Belden Equiv 8723

Description

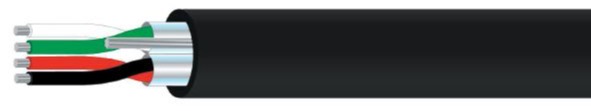

This is a Cleveland Cable 2 pair plus drain cable which is equivalent to Belden 8273 PE cable. Collectively foil screened multi pair cables for interference free high speed data transmission in digital communications systems, Audio, Control & Instrument Cable.

Key Features

•
  Voltage Rating 300 Volts
•
  Minimum Bending Radius 10 x Overall Diameter
•
  Temperature Limits Operating Temperature: -45°C To +70°C
  Installation Temperature: -15°C To +70°C

Construction

• Conductor: Stranded tinned copper
• Insulation: Polypropylene (PP)
• Insulation Screen: Aluminium/Polyester Tape Screen (AL/PET) On Each Pair
• Drain Wire: Tinned Copper
• Outer Sheath: Polyethylene (PE)
• Sheath Colour: Grey

Standards

• IEC 60332-1-2
• UL1685-FT4

Core Colours
