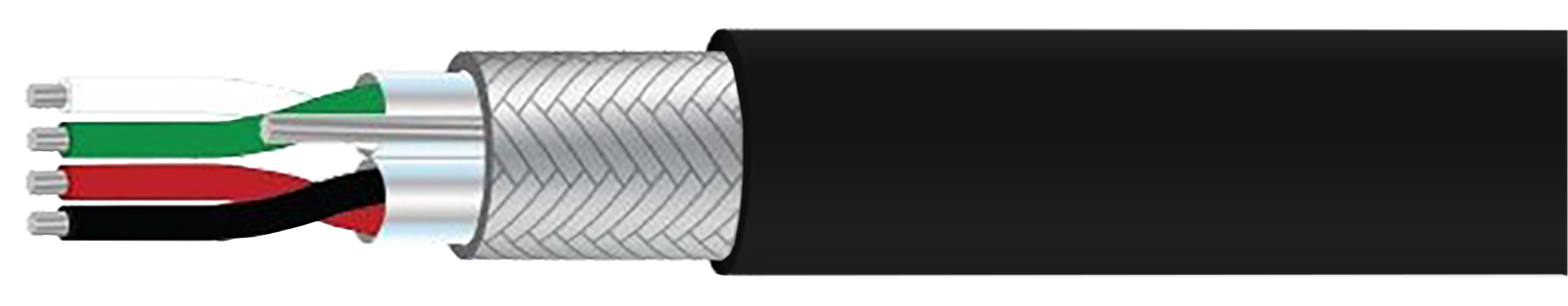

Belden Equiv 8723 SWA LSZH

Description

This is a Cleveland Cable 2 pair plus drain cable which is equivalent to Belden 8273 cable. Collectively foil screened multi pair cables for interference free high speed data transmission in digital communications systems, Audio, Control & Instrument Cable. LSZH bedding and outer sheath for indoor use and public buildings where there may be risk of fire. Steel wire armour for additional strength and robustness.

Key Features

•
  Voltage Rating 300 Volts
•
  Minimum Bending Radius 15 x Overall Diameter
•
  Temperature Limits Installation temperature: -15°C To +80°C

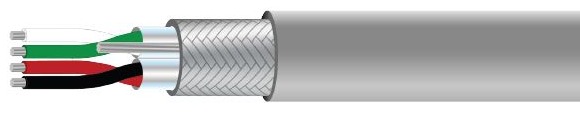

Construction

• Conductor: Stranded tinned copper
• Insulation: Polypropylene (PP)
• Insulation Screen: Aluminium/Polyester Tape Screen (AL/PET) On Each Pair
• Drain Wire: Tinned Copper
• Bedding: Low Smoke Zero Halogen (LSZH)
• Armour: Galvanised Steel Wire Armour (GSWA)
• Outer Sheath: Low Smoke Zero Halogen (LSZH)
• Sheath Colour: Grey

Standards

• BS EN 60332-1-2
• BS EN 61034-2
• BS EN 60754-1&2
• ISO 4892-3
• LVD (2014/35/EU)

Core Colours
