Belden Equiv 8760

Description

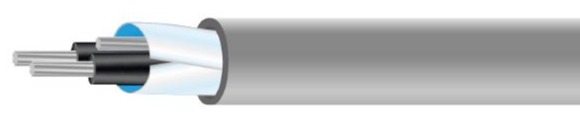

This is a Cleveland Cable single pair plus drain wire which is equivalent to Belden 8760. Foil screened twisted pair cables for interference free high speed data transmission in digital communications systems sound, audio and computer equipment. Suitable for outdoor installation in a duct.

Key Features

•
  Voltage Rating 300 Volts
•
  Minimum Bending Radius 10 x Overall Diameter
•
  Temperature Limits Operating temperature: -20°C To +60°C

Construction

• Conductor: Stranded tinned copper
• Insulation: Polyethylene (PE)
• Insulation Screen: Aluminium/Polyester Tape Screen (AL/PET)
• Drain Wire: Tinned Copper
• Outer Sheath: Polyvinyl Chloride (PVC)
• Sheath Colour: Grey

Standards

• BS EN 60332-1-2
• UL1581
• BS EN 61034-2
• CPR Rated to ECA
• BS EN 60754-1&2

Core Colours
