Belden Equivalent 8760 LSZH

Description

Single pair plus drain wire which is equivalent to Belden 8760. Foil screened twisted pair cables for interference free high speed data transmission in digital communications systems sound, audio and computer equipment. Low Smoke Zero Halogen Outer Sheath for applications where smoke, toxic fumes and fire create a potential risk.

Key Features

•
  Voltage Rating 300 Volts
•
  Minimum Bending Radius 10 x Overall Diameter
•
  Temperature Limits Temperature Range: -20°C to +80°C

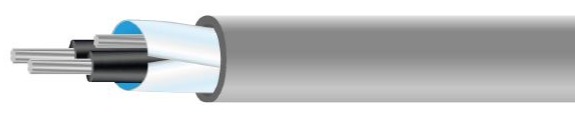

Construction

• Conductor: Stranded tinned copper
• Insulation: Polyethylene (PE)
• Insulation Screen: Aluminium/Polyester Tape Screen (AL/PET)
• Drain Wire: Tinned Copper
• Outer Sheath: Low Smoke Zero Halogen (LSZH)
• Sheath Colour: Grey

Standards

• BS EN 60332-1-2
• UL1581
• BS EN 61034-2
• BS EN 60754-1&2

Core Colours
