Belden Equiv 9502 LSZH

Description

LSZH Alternative overall screened cable provides protection against electrical interference. Suitable for use over long distances at high performance levels and where low signal distortion is required. Used for instrumentation control and RS232 applications. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment.

Key Features

•
  Voltage Rating 300 Volts
•
  Minimum Bending Radius 10 x Overall Diameter
•
  Temperature Limits Installation temperature: -15°C To +80°C

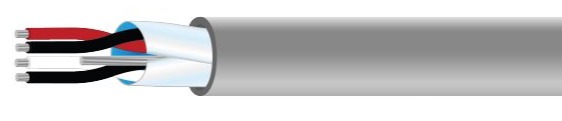

Construction

• Conductor: Stranded tinned copper
• Insulation: Polyethylene (PE)
• Insulation Screen: Aluminium/Polyester Tape Screen (AL/PET)
• Drain Wire: Tinned Copper
• Outer Sheath: Low Smoke Zero Halogen (LSZH)
• Sheath Colour: Grey

Standards

• BS EN 60332-1-2
• BS EN 61034-2
• BS EN 60754-1&2

Core Colours
