The SHDSS cable cleat range consists of metallic cable cleats which have been designed, constructed, and tested in accordance with the International Standard ‘cable cleats for Electrical Installations’ IEC 61914.

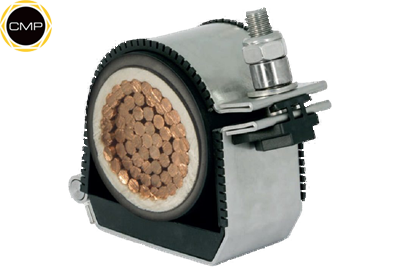

The SHDSS cable cleat has been designed and tested for high short circuit conditions on cables held in single, parallel / flat formation, to ensure the securing and retention of cables without damage. The cable cleat is fabricated from 316L stainless steel, giving it high creep strength whilst providing excellent corrosion resistance in the harshest of environments.
The Sapphire cable cleat has one M12 and two M10 fixing clearance holes within its base, allowing versatility to the installer during installation, and is designed to enable the product to be secured to a variety of mounting surfaces. The Sapphire cable cleat hinge opens fully, allowing the cables to be easily placed within the cable cleat, to aid the installer before closing and securing via the mouth piece bolt.
|Code||Description||Qty / Metres|
|SHDSS026032||SAPPHIRE ST/STEEL SINGLE CLEAT 26 -32MM|
|SHDSS032038||SAPPHIRE ST/STEEL SINGLE CLEAT 32 - 38MM|
|SHDSS038046||SAPPHIRE ST/STEEL SINGLE CLEAT 38 - 46MM|
|SHDSS046051||SAPPHIRE ST/STEEL SINGLE CLEAT 46 - 51MM|
|SHDSS051058||SAPPHIRE ST/STEEL SINGLE CLEAT 51 - 58MM|
|SHDSS058070||SAPPHIRE ST/STEEL SINGLE CLEAT 58 - 70MM|
|SHDSS070083||SAPPHIRE ST/STEEL SINGLE CLEAT 70 - 83MM|
|SHDSS083097||SAPPHIRE ST/STEEL SINGLE CLEAT 83 - 97MM|
|SHDSS096109||SAPPHIRE ST/STEEL SINGLE CLEAT 96 - 109MM|
|SHDSS106120||SAPPHIRE ST/STEEL SINGLE CLEAT 106 - 120MM|
|SHDSS120135||SAPPHIRE ST/STEEL SINGLE CLEAT 120 - 135MM|
|SHDSS135150||SAPPHIRE ST/STEEL SINGLE CLEAT 135 - 150MM|
