DNO Approved SNE Copper Split Concentric Cable - XLPE, PVC or LSZH - 4mm to 35mm

Overview

Used by Distribution Network Operators (DNOs) such as UKPN, WPD, ENW, NPG, SSE etc to provide the final connection to domestic properties. Suitable for sub main distribution boxes, Street lighting systems and high rise buildings.

SNE (Seperate Neutral & Earth) construction for use in older installations.

Standards

• BS7870 -3.22
• BS EN 50266-2-4
• BS EN 60754
• BS EN 50268 1 & 2
• BS EN 60228

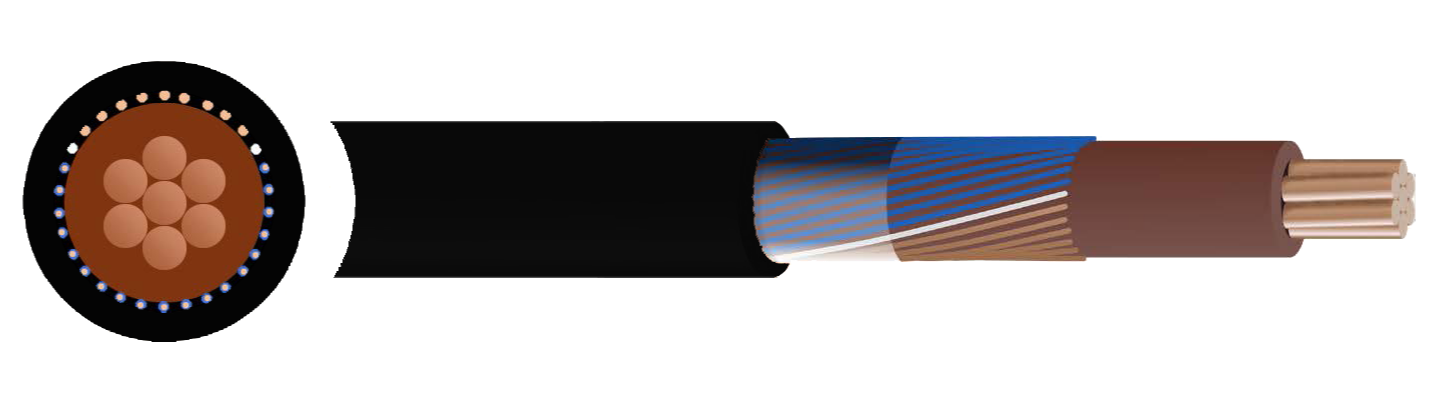

Construction

Conductor: Class 2 Stranded Copper Conductor
Insulation: Cross Link Polyethylene (XLPE)
Neutral Conductor: Plain Copper wire covered in blue polymeric compound
Earth Continuity Conductor: Plain Copper
String Seperator: Non Hygroscopic seperator
Sheath: Available in both Poly Vinyl Chloride (PVC) and Low Smoke Zero Halogen (LSZH)
Sheath Colour: Black (PVC) or Orange (LSZH)

Characteristics

Voltage Rating: 600V/1000V
Temperature limits: -15°C to +70°C
Minimum Bending Radius: As Per Manufacturers Datasheet

Should not be installed at temperatures below 0°C

For more information please consult a member of the Cleveland Cable Sales Team
