2XS(FL)2Y HDPE High Voltage 26/45 (52) kV Cable 95mm-1400mm

Description

Medium voltage HDPE power cables for distribution networks. This cable is used extensively in the renewables and DNO sectors. 2XS(FL)2Y cable is suitable for external installation. Cables can be fixed on cable trays, within conduits or fixed to walls and is suitable for burial in ducts. The cable has a UV Resistant outer sheath and three water blocking layers to make it water resistant

Key Features

•
  Voltage Rating 26/45 (52kV)
•
  Minimum Bending Radius 15 x Overall Diameter
•
  Temperature Limits Temperature Range: -20°C to +60°C
  Conductor Operating Temperature: +90°C
  Short Circuit Temperature up to 5 sec: 250°C

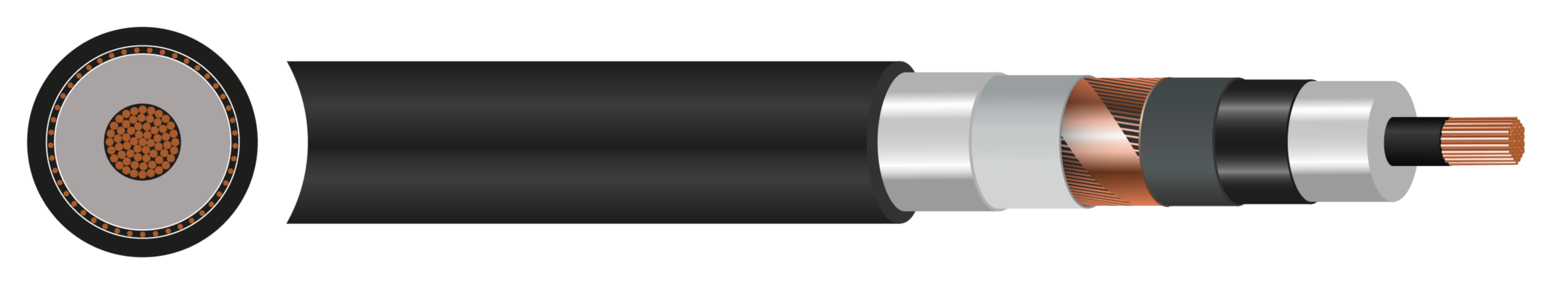

Construction

• Conductor: Class 2 stranded copper conductor
• Conductor Screen: Extruded semi-conductive screen
• Insulation: Cross Linked polyethylene (XLPE)
• Insulation Screen: Strippable Extruded Semi Conductor
• Water Blocking: Semi-conductive swellable tape
• Metallic Screen: Copper wires with equalising tape
• Waterblocking Tape: Semi-conductive swellable tape
• Tape Separator: Aluminium tape coated with PE copolymer, applied longitudinally
• Outer Sheath: High Density Polyethylene (HDPE)
• Sheath Colour: Black

Standards

• DIN VDE 0295 / IEC 60228
• VDE 0276
• IEC 60502-2
• IEC 60840
