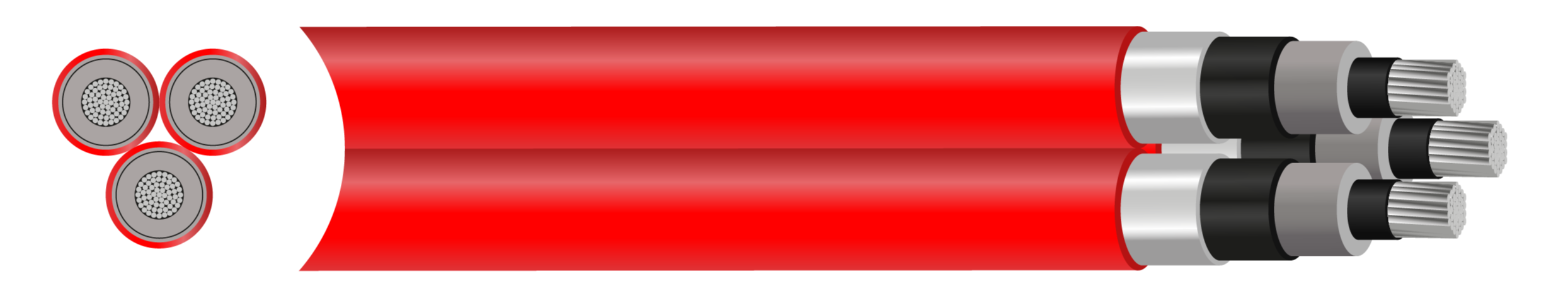

ARE4H5EX - Compact Cable 18/30kV

Description

Medium Voltage triplex form screened power cable for wind generation facilities. Polyethylene outer sheath makes it suitable for laying in underground channels or pipe and laying in open air. Can be buried underground as long as it is installed with adequate protection.

Key Features

•
  Voltage Rating 18/30 (36)kV
•
  Minimum Bending Radius 20x Overall Diameter
•
  Temperature Limits Minimum Installation Temperature: -25°C
  Maximum Operating Temperature: +90°C
  Maximum Short Circuit Temperature: +250°C

Construction

• Conductor: Class 2 Stranded Circular Compacted Aluminium Conductor
• Conductor Screen: Semi conductive XLPE
• Insulation: Cross Linked polyethylene (XLPE)
• Insulation Screen: Semi conductive XLPE
• Water Blocking: Semi-conductive swellable tape
• Metallic Screen: Aluminium tape longitudinally applied
• Outer Sheath: Cross-Linked Polyethylene (XLPE) Type DIX 8
• Sheath Colour: Red

Standards

• IEC 60502-2
• IEC 60228
• HD 620
