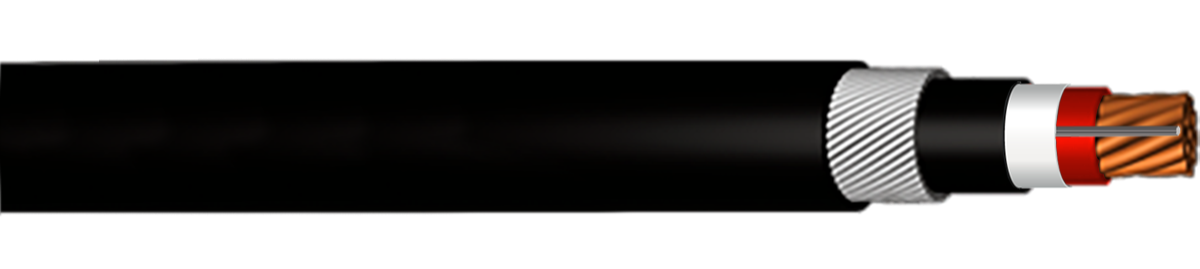

Single Core Armoured Hydrocarbon Resistant Power 1kV Cable-25mm² to 400mm²

Description

This Single core copper cable is used in Class I, Division II, hazardous areas as classified by the oil and gas industry. They are built with protection against the flammable vapours and gases that may be present. They provide low voltage power supply to electricity systems in these areas. They are resistant to aliphatic and aromatic hydrocarbons with a polyamide intermediate sheath and special compound PVC outer sheath which serves as a barrier to moisture ingress. It is commonly used in switching stations and industrial plants. Due to the mechanical steel wire armour it is suitable for external and internal installation in cable ducts and for direct burial.

Key Features

•
  Voltage Rating 600/1000 Volts
•
  Flame Retardancy BS EN/IEC 60332-3-22
•
  Temperature Limits Temperature Range: -20°C to +60°C

Construction

• Conductor: class 2 Copper Conductor
• Insulation: Cross Linked polyethylene (XLPE)
• Inner Sheath: Polyvinyl Chloride (PVC)
• Screen: Collective Aluminium/mylar tape with 0.5mm drain wire
• Intermediate Sheath: Polyamide (PA)
• Armour: Aluminium Wire Armour (AWA)
• Outer Sheath: Polyvinyl Chloride (PVC)
• Sheath Colour: Black

Standards

• IEC 60502-1
• BS EN/IEC 60332-3-22


Core Colours
