AXMK PVC 1kV Cable - 16mm² to 240mm²

Description

A/XMK is a multi core aluminium cable with a PVC Outer Sheath rated to 0.6/1kV. The cable is manufactured for the construction industry in Finland. Designed for power distribution In urban networks, industrial plants, electric power plants and other electricity consumers. It is widely used for the connection of control devices in industry, traffic etc. The cable is suitable for fixed external installation in underground applications or in intenal premises fixed within cable ducts or the open air

Key Features

•
  Voltage Rating 600/1000 Volts
•
  Minimum Bending Radius 10 x Overall Diameter
•
  Flame Retardancy BS EN/IEC 60332-1-2
•
  Temperature Limits Operating Temperature: -30°C +90°C
  Maximum Short Circuit Temperature: +250°C

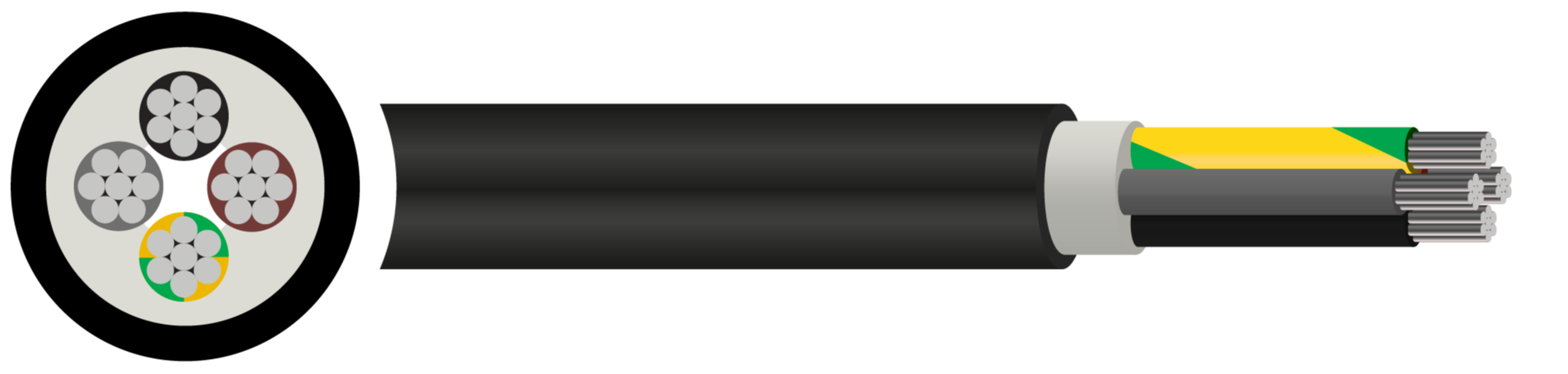

Construction

• Conductor: Class 1 round solid aluminium
  Class 2 round stranded aluminium
  Class 2 sector shaped stranded aluminium
• Conductor: Class 1 solid or class 2 stranded aluminium
• Insulation: Cross Linked polyethylene (XLPE)
• Tape: Plastic tape
• Outer Sheath: Polyvinyl Chloride (PVC)
• Sheath Colour: Black

Standards

• HD 308 S2
• BS EN/IEC 60332-1-2
• HD 603 SD
• SFS 4879

Core Colours
