AXQJ, IFSI Al, AXCMK-HF Power Cable 25mm to 300mm

Description

Power cable suitable for fixed installation in a dry and damp environment, on or under plaster, in cable trays, walls and concrete. Not intended for direct burial in ground or water. For outdoor applications the cable can be laid in cable ducting, but additional measures need to be taken to prevent water penetration into the cable ducting.

Suitable for supply systems in an emergency. Suitable for application in all situations where people and materials need to be protected in case of fire.

Recommended for public buildings, for industrial complexes, electric power plants, transformer stations, municipal facilities, hotels, shopping malls, hospitals, schools, airports, underground railways and similar. Concentric conductor serves as electromagnetic screen, which could also be applied as neutral conductor.

Key Features

•
  CPR Compliant CPR Class: Dca
•
  Installation Guidelines Should not be installed at temperatures below -15°C
•
  Voltage Rating 600/1000 Volts
•
  Minimum Bending Radius Single Core 15 x Overall Diameter,

  Multicore 12 x Overall Diameter

•
  Flame Retardancy Flame retardant: IEC 60332-1-2, Fire retardant: IEC 60332-3-24

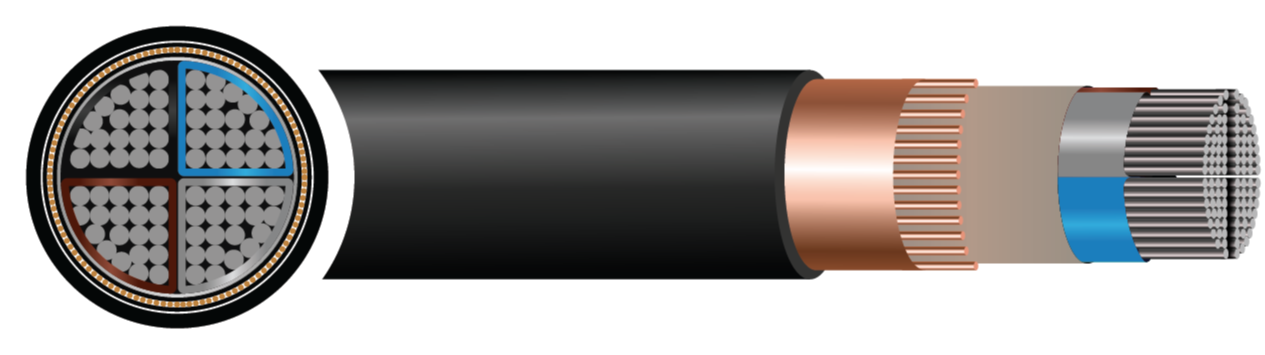

Construction

• Conductor: Class 2 Aluminimum conductors according to EN 60228
• Insulation: Cross Linked polyethylene (XLPE)
• Bedding: Extruded elastomere or plastomere compound or plastic tape
• Concentric Conductor: Copper wires with counter helix of copper tape
• Outer Sheath: Halogen Free Fire Retardant (HFFR)
• Sheath Colour: Black

Standards

• IEC/EN 60754-1/2
• IEC 61034-1
• BS EN/IEC 60332-1-2
• IEC 60228
• BS EN / IEC 60332-3-24 (cat C)
• SS 424 14 18
• SFS 5546
• IEC 60502-1
• HD 604 S1, P. 5I

Core Colours
