Belden Equiv 8444 LSZH

Description

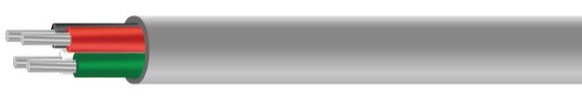

This is a Cleveland Cable 4 core unscreened cable which is equivalent to Belden 8444 cable. Used in digital communications systems, Audio, Control &
Instrument Cable.

Key Features

•
  Voltage Rating 300 Volts
•
  Minimum Bending Radius 10 x Overall Diameter
•
  Temperature Limits Temperature Range: -20°C to +75°C

Construction

• Conductor: Stranded tinned copper
• Insulation: Polypropylene (PP)
• Outer Sheath: Low Smoke Zero Halogen (LSZH)
• Sheath Colour: Grey

Standards

• BS EN 60332-1-2
• UL1581
• BS EN 61034-2
• BS EN 60754-1&2
• UL758

Core Colours
