Belden Equivalent 8761 LSZH

Description

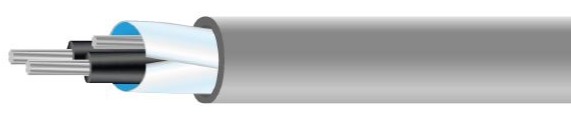

This is a single pair plus drain wire cable which is equivalent to Belden 8761. Foil screened twisted pair cables for interference free high speed data transmission in digital communications systems sound, audio and computer equipment. Low Smoke Zero Halogen Outer Sheath for applications where smoke, toxic fumes and fire create a potential risk.

Key Features

•
  Voltage Rating 300 Volts
•
  Minimum Bending Radius 10 x Overall Diameter
•
  Temperature Limits Temperature Range: -20°C to +60°C

Construction

• Conductor: Stranded tinned copper
• Insulation: Polyethylene (PE)
• Insulation Screen: Aluminium/Polyester Tape Screen (AL/PET)
• Drain Wire: Tinned Copper
• Outer Sheath: Low Smoke Zero Halogen (LSZH)
• Sheath Colour: Grey

Standards

• BS EN 60332-1-2
• BS EN 61034-2
• BS EN 60754-1&2

Core Colours
