Belden Equivalent 9538 LSZH

Description

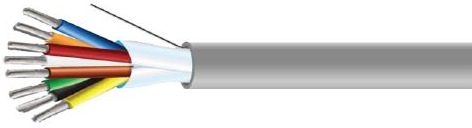

8 Core plus drain cable which is equivalent to Belden 9538 LSZH cable.

Collectively foil screened multicore cables for interference free RS 232 data transmission in Computers and digital communications systems, low
voltage analogue line level audio and panel wiring.

Key Features

•
  Voltage Rating 300 Volts
•
  Minimum Bending Radius 10 x Overall Diameter
•
  Temperature Limits Operating temperature: -45°C To +80°C
  Installation temperature: -15°C To +80°C


Construction

• Conductor: Stranded tinned copper
• Insulation: Polyethylene (PE)
• Drain Wire: Tinned Copper
• Overall Tape Screen: Aluminium/Polyester Tape Screen (AL/PET)
• Outer Sheath: Low Smoke Zero Halogen (LSZH)

Core Colours
