BS 6622 XLPE MDPE 6.35/11 (12)kV Cable

Description

11kV 3 core stranded copper mains power cable is most suitable for use in power distribution networks. BS6622 cable is suitable for external installation. Cables can be fixed on cable trays, within conduits or fixed to walls and is suitable for burial in ducts. The cable has a UV Resistant outer sheath and a water blocking layer.

Key Features

•
  Voltage Rating 6.35kV / 11kV (12kV)
•
  Minimum Bending Radius 12 x Overall Diameter
•
  Temperature Limits Temperature Range: 0°C to +90°C

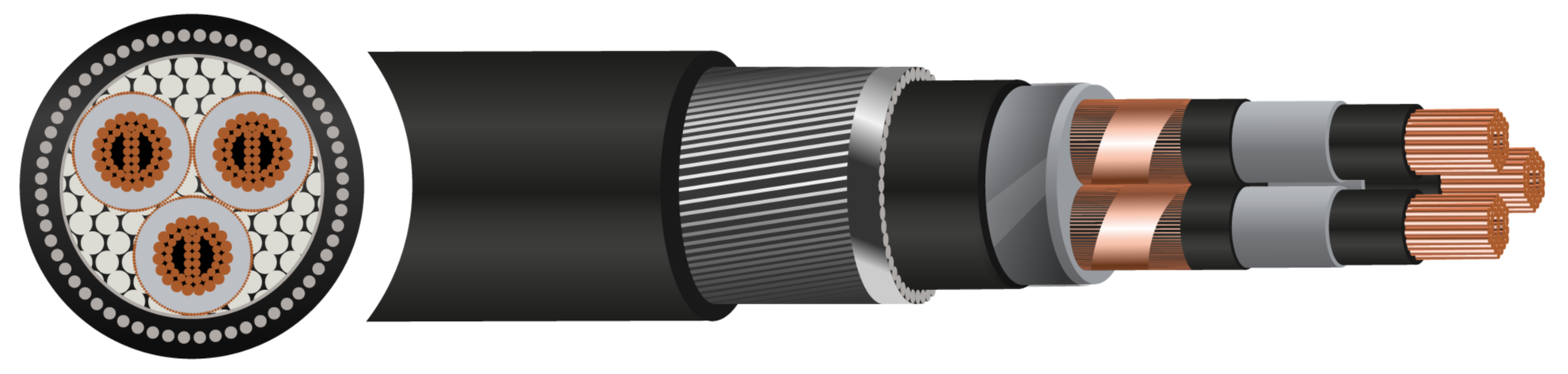

Construction

• Conductor: Class 2 stranded copper conductor
• Conductor Screen: Semi conductive XLPE
• Insulation: Cross Linked polyethylene (XLPE)
• Insulation Screen: Semi conductive XLPE
• Metallic Screen: Copper Wires plus Copper tape
• Separator: Binding Tape
• Filler: Polyethylene Terephthalate (PET) fibres
• Bedding: Polyvinyl Chloride (PVC)
• Armour: Galvanised Steel Wire Armour (GSWA)
• Outer Sheath: Medium Density Polyethylene (MDPE)
• Sheath Colour: Red or Black

Standards

• BS EN/IEC 60228
• IEC 60502-2
• BS6622
