BS6622 XLPE/PVC Medium Voltage Single Core Copper Mains Cable 12.7/22kV-50mm² to 500mm²

Description

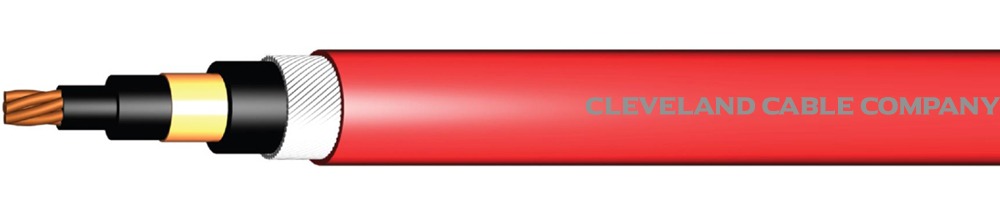

BS6622 cables are armoured power cables designed for medium voltage fixed installations, such as power networks and industrial installations, including those in power supply stations, indoors, outdoors, underground, and in cable ducts. These 33kV single core cables have copper conductors with cross-linked polyethylene (XLPE) insulation various screen options, water blocking options, aluminium wire armour and PVC bedding and outer sheath.

BS6622 cables are suitable for Internal use in buildings, power stations, or switchboards and are often run in cable tray for industrial applications. They can also be used externally in cable duct and due to the aluminium wired armour can be buried directly in free draining soil.

Key Features

•
  Voltage Rating 12.7/22 (24)kV
•
  Minimum Bending Radius 15 x Overall Diameter
•
  Flame Retardancy BS EN 60332-1-2
•
  Temperature Limits Maximum operating temp: 90°C
  Initial temperature at S.C.C for screen: 80°C
  Maximum temp during short circuit: 250°C

Construction

• Conductor: Class 2 Copper Conductor
• Insulation: Cross Linked polyethylene (XLPE)
• Insulation Screen: Strippable Extruded Semi Conductor
• Bedding: Polyvinyl Chloride (PVC)
• Metallic Screen: Individual or overall copper tape screen
• Bedding: Polyvinyl Chloride (PVC)
• Armour: Aluminium Wire Armour (AWA)
• Sheath: PVC (Polyvinyl Chloride)

Standards

• BS6622
• IEC 60502-2
• BS EN/IEC 60332-1-2
• BS EN/IEC 60228
