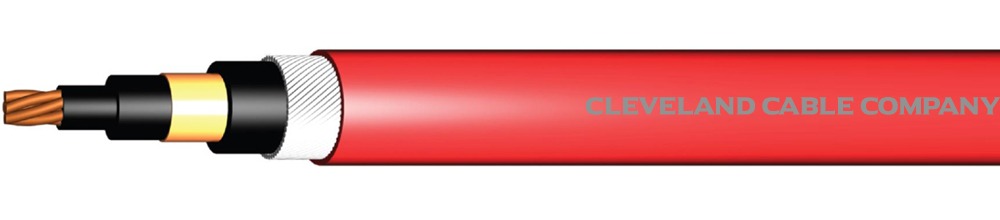

BS7835 Single Core Armoured Mains Cable CU XLPE AWA LSZH 12.7/22kV - 50mm² to 500mm²

Description

BS7835, single core copper cable, 12.7/22kV, XLPE insulation, AWA, LSZH sheath, armoured cable, water blocked, industrial power networks, power stations, 50mm², 70mm², 95mm², 120mm², 150mm², 185mm², 240mm², 300mm², 400mm², 500mm²

Key Features

•
  Voltage Rating 12.7/22 (24)kV
•
  Minimum Bending Radius 15 x Overall Diameter
•
  Flame Retardancy BS EN/IEC 60332-1
  BS EN/IEC 60332-3-24
•
  Temperature Limits Conductor Maximum Operating Temperature: +90°C
  Maximum Short Circuit Temperature: +250°C

Construction

• Conductor: Class 2 Copper Conductor
• Insulation: Cross Linked polyethylene (XLPE)
• Insulation Screen: Semi-Conductive XLPE
• Metallic Screen: Individual copper tape screen
• Filler: Polyethylene Terephthalate (PET) fibres
• Bedding: Low Smoke Zero Halogen (LSZH)
• Armour: Aluminium Wire Armour (AWA)
• Outer Sheath: Low Smoke Zero Halogen (LSZH)

Standards

• BS 7835
• IEC/EN 61034-1/2,
• IEC/EN 60754-1/2
• BS EN/IEC 60332-1-2 & BS EN/IEC 60332-3-24

Core Colours
