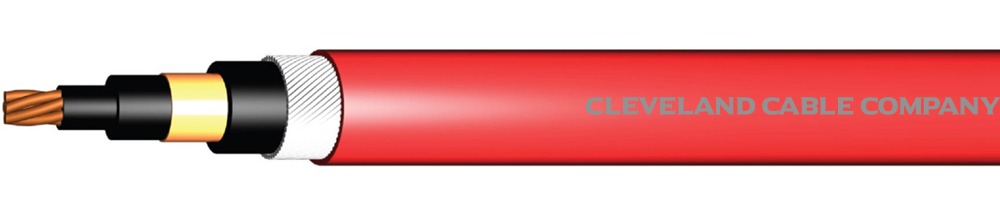

BS7835 Single Core Armoured Mains Cable CU XLPE AWA LSZH 8.7/15kV - 50mm² to 500mm²

Description

BS67835 cables are armoured power cables designed for medium voltage fixed installations, such as power networks and industrial installations, including power supply stations, and sub stations. Can be installed indoors, outdoors, underground, and in cable ducts. These 3 core cables have copper conductors with cross-linked polyethylene (XLPE) insulation various screen options, water blocking options, aluminium wire armour and LSZH bedding and outer sheath.

BS7835 have a higher CPR classification than BS6622 which is the available PVC option. The UV resistant LSZH outer sheath means this cable is suitable for Internal use in buildings, power stations, or switchboards and are often run in cable tray for industrial applications. They can also be used externally in cable duct and due to the aluminium wired armour can be buried directly in free draining soil.

Key Features

•
  Voltage Rating 8.7/15kV
•
  Minimum Bending Radius 15 x Overall Diameter
•
  Flame Retardancy BS EN/IEC 60332-1-2
  BS EN/IEC 60332-3-24
•
  Temperature Limits Conductor Maximum Operating Temperature: +90°C
  Maximum Short Circuit Temperature: +250°C

Construction

• Conductor: Class 2 Copper Conductor
• Conductor Screen: Semi conductive XLPE
• Insulation: Cross Linked polyethylene (XLPE)
• Insulation Screen: Semi-Conductive XLPE
• Metallic Screen: Individual or overall copper tape screen
• Filler: Polyethylene Terephthalate (PET) fibres
• Separator: Binding Tape
• Bedding: Low Smoke Zero Halogen (LSZH)
• Armour: Aluminium Wire Armour (AWA)
• Outer Sheath: Low Smoke Zero Halogen (LSZH)
• Sheath Colour: Red or Black
