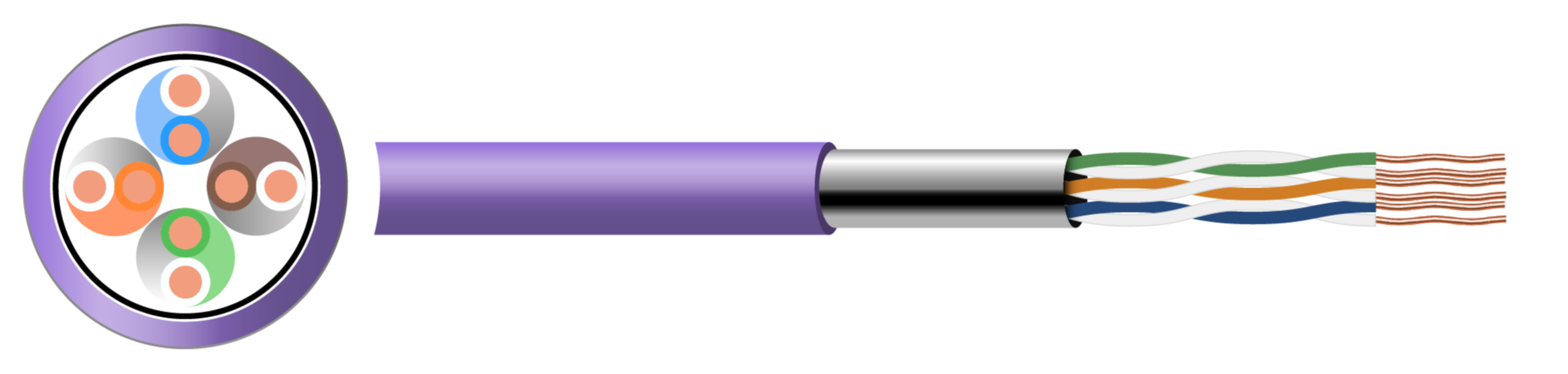

Cat 5E FTP 4 Pair LSZH Cable

Description

CAT5e  Supports speeds up to 1 Gigabit per second (Gbps). and a bandwidth at a frequency of 100 MHz. This is a popular and cost-effective choice for most residential and small business needs, such as basic internet usage and streaming.  This is an unarmoured multi-pair high performance cable that consists of 4 twisted pairs in a foil screen to limit electromagnetic interference, which is used mainly for data transmission between wired computer networks The LZSH sheath makes it perfect for installations where smoke emissions and toxic fumes create a potential risk to life in case of a fire. This cable is compliant under CPR 2017 for use in public buildings.

Key Features

•
  Minimum Bending Radius Fixed: 4 x overall diameter
  Flexing: 8 x overall diameter
•
  Flame Retardancy BS EN/IEC 60332-1-2
•
  Temperature Limits Temperature Range: -20°C to +60°C

Construction

• Conductor: Class 1 solid copper
• Insulation: High Density Polyethylene (HDPE)
• Drain Wire: Tinned Copper
• Screen: Aluminium Foil
• Outer Sheath: Low Smoke Zero Halogen (LSZH)
• Sheath Colour: Violet

Standards

• IEC 11801
• BS EN/IEC 60332-1-2
• YD/T1019

Core Colours
