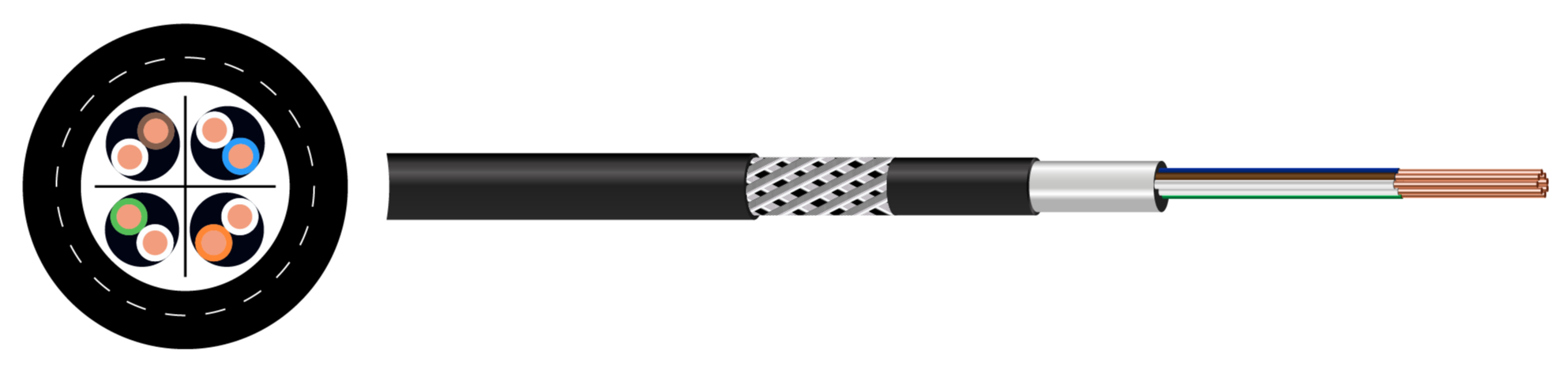

Cat 5E PE FTP 4 Pair GSWB LSZH Cable

Description

CAT5e  Supports speeds up to 1 Gigabit per second (Gbps). and a bandwidth at a frequency of 100 MHz. This is a popular and cost-effective choice for most residential and small business needs, such as basic internet usage and streaming.  This is an armoured multi-pair high performance cable that consists of 4 twisted pairs in a foil screen with further steel wired braiding for mechanical protection. The cable is used mainly for horizontal wiring in a local area network (LAN). The LZSH sheath makes it perfect for installations where smoke emissions and toxic fumes create a potential risk to life in case of a fire. This cable is compliant under CPR 2017 for use in public buildings.

Key Features

•
  Minimum Bending Radius 6 x overall diameter
•
  Flame Retardancy BS EN/IEC 60332-1-2
•
  Temperature Limits Temperature Range: -20°C to +60°C

Construction

• Conductor: Class 1 solid copper
• Insulation: High Density Polyethylene (HDPE)
• Drain Wire: Tinned Copper
• Screen: Aluminium Foil
• Bedding: Low Smoke Zero Halogen (LSZH)
• Armour: Galvanised Steel Wire Braid (GSWB)
• Outer Sheath: Low Smoke Zero Halogen (LSZH)
• Sheath Colour: Black

Standards

• BS EN/IEC 60332-1-2
• IEC 11801
• TIA/EIA 568
