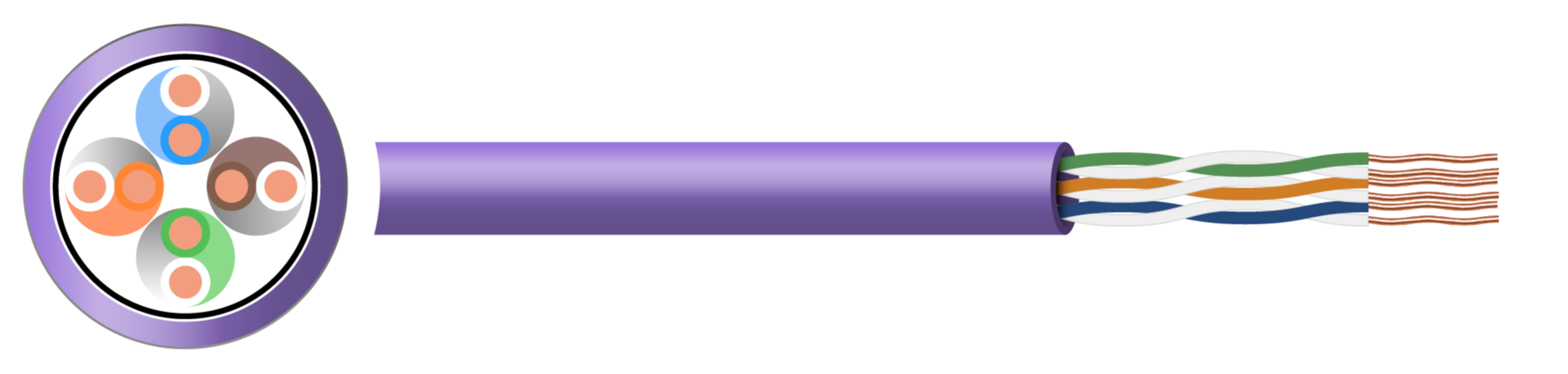

Cat 5E U/UTP LSZH Cable

Description

A 4 pair high performance cable that consists of twisted pair conductors, used mainly for data transmission. Category 5E supports a frequency range of up to 100MHz and is designed for transmission speeds of up to 1 gigabit per second  (Gigabit Ethernet). For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment.

Key Features

•
  Minimum Bending Radius Fixed: 4 x overall diameter
  Flexing: 8 x overall diameter
•
  Flame Retardancy BS EN/IEC 60332-1-2
•
  Temperature Limits Temperature Range: -20°C to +60°C

Construction

• Conductor: Class 1 solid copper
• Insulation: High Density Polyethylene (HDPE)
• Outer Sheath: Low Smoke Zero Halogen (LSZH)
• Sheath Colour: Violet

Standards

• BS EN/IEC 60332-1-2
• IEC 11801
• YD/T1019
• TIA/EIA 568

Core Colours
