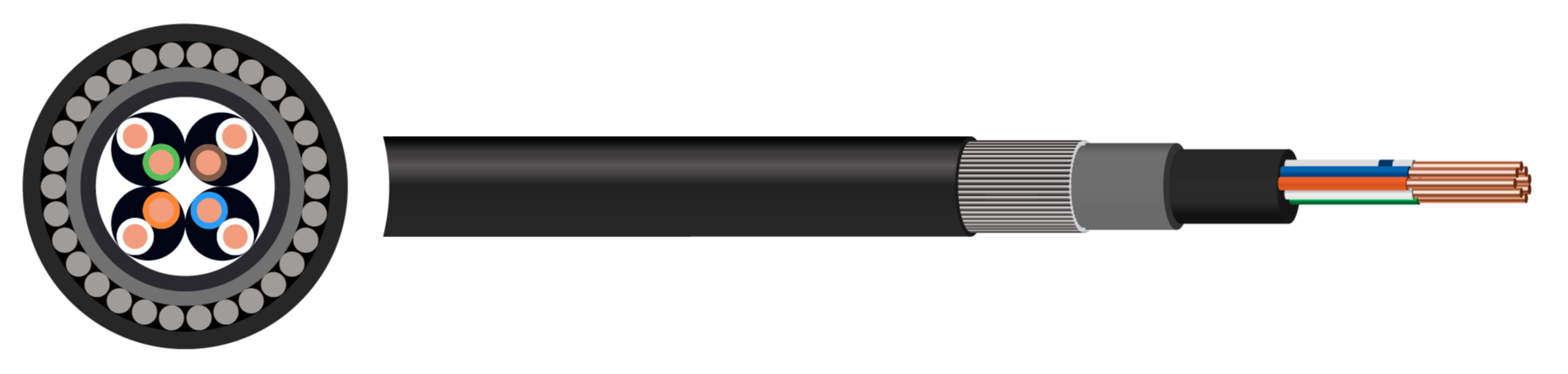

Cat 5E UTP 4 Pair SWA LSZH Cable

Description

An armoured multi-pair high performance cable that consists of twisted pairs, used mainly for data transmission. Category 5E cables support a frequency range of up to 100MHz and designed for transmission speeds of up to 1 gigabit per second (Gigabit Ethernet). For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment.

Key Features

•
  Minimum Bending Radius 8 x Overall Diameter
•
  Flame Retardancy BS EN/IEC 60332-1-2
•
  Temperature Limits Temperature Range: -20°C to +60°C

Construction

• Conductor: Class 1 solid copper
• Insulation: High Density Polyethylene (HDPE)
• Inner Sheath: Low Smoke Zero Halogen (LSZH)
• Bedding: Low Smoke Zero Halogen (LSZH)
• Armour: Galvanised Steel Wire Armour (SWA)
• Outer Sheath: Low Smoke Zero Halogen (LSZH)
• Sheath Colour: Black

Standards

• IEC 11801
• BS EN/IEC 60332-1-2
• TIA/EIA 568
