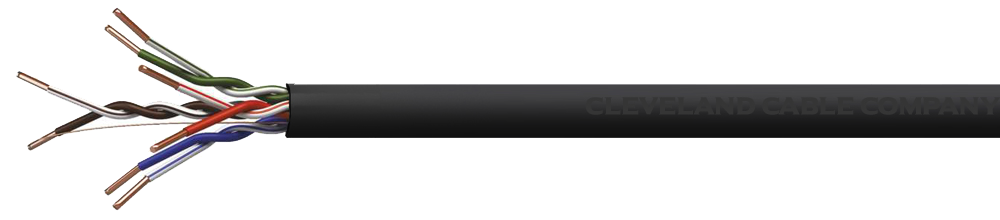

Cat 6 UTP 4 Pair PE Cable

Description

CAT6 Supports speeds up to 1 Gigabit per second (Gbps). and a bandwidth at a frequency of up to 250MHz. This is a popular and cost-effective choice for most business needs, such as high demand internet usage, Video calls, Team collaboration and VOIP.  This is an unarmoured multi-pair high performance cable that consists of 4 twisted pairs with a durable PE sheath meaning it can be used internally and externally in ducts. The cable is used mainly for data transmission between wired computer networks. Cat 6 cables are backwards compatible with CAT5 and CAT5E

Key Features

•
  Minimum Bending Radius Fixed: 4 x overall diameter
  Flexing: 8 x overall diameter
•
  Temperature Limits Temperature Range: -20°C to +60°C

Construction

• Conductor: Class 1 solid copper
• Insulation: High Density Polyethylene (HDPE)
• Outer Sheath: Polyethylene (PE)
• Sheath Colour: Black

Standards

• IEC 11801
• YD/T1019
• TIA/EIA 568

Core Colours
