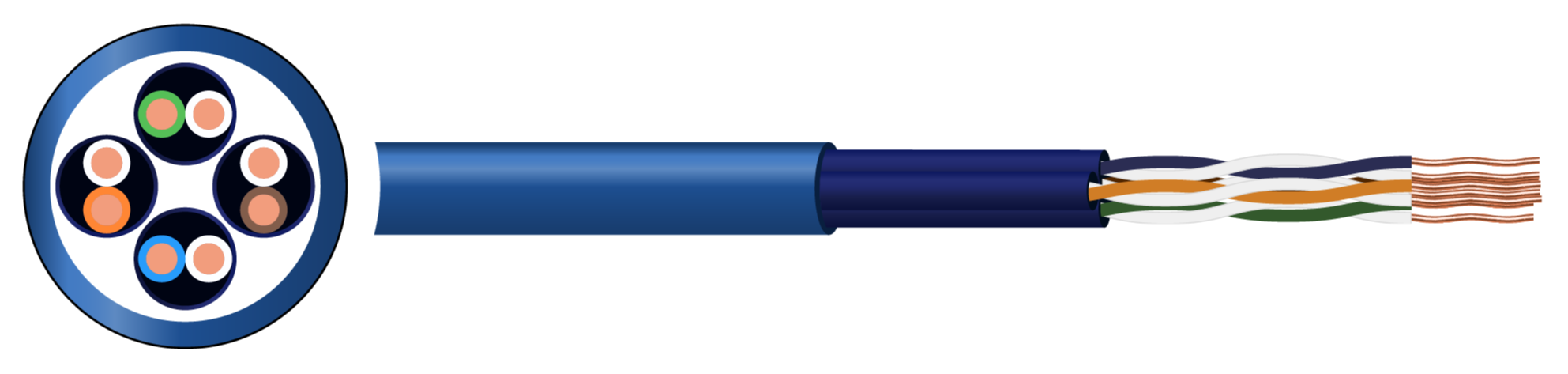

Cat 6A FTP 4 Pair LSZH Cable

Description

A very high performance data cable designed for transmission speeds of up to 10GB per second. These cables allow the use of protocols supported by class EA for the implementation of 10G Base-T. Cat 6A cables support frequency ranges up to 500MHz compatible with PoE & PoE+. For installations where f ire, smoke emissions and toxic fumes create a potential risk to life and equipment.

Key Features

•
  Minimum Bending Radius Fixed: 4 x overall diameter
  Flexing: 8 x overall diameter
•
  Flame Retardancy BS EN/IEC 60332-1-2
•
  Temperature Limits Temperature Range: -20°C to +60°C

Construction

• Conductor: Class 1 solid copper
• Insulation: High Density Polyethylene (HDPE)
• Insulation Screen: Aluminium/Polyester Tape Screen (AL/PET)
• Drain Wire: Tinned Copper
• Outer Sheath: Low Smoke Zero Halogen (LSZH)
• Sheath Colour: Blue

Standards

• BS EN/IEC 60332-1-2
• TIA/EIA 568
