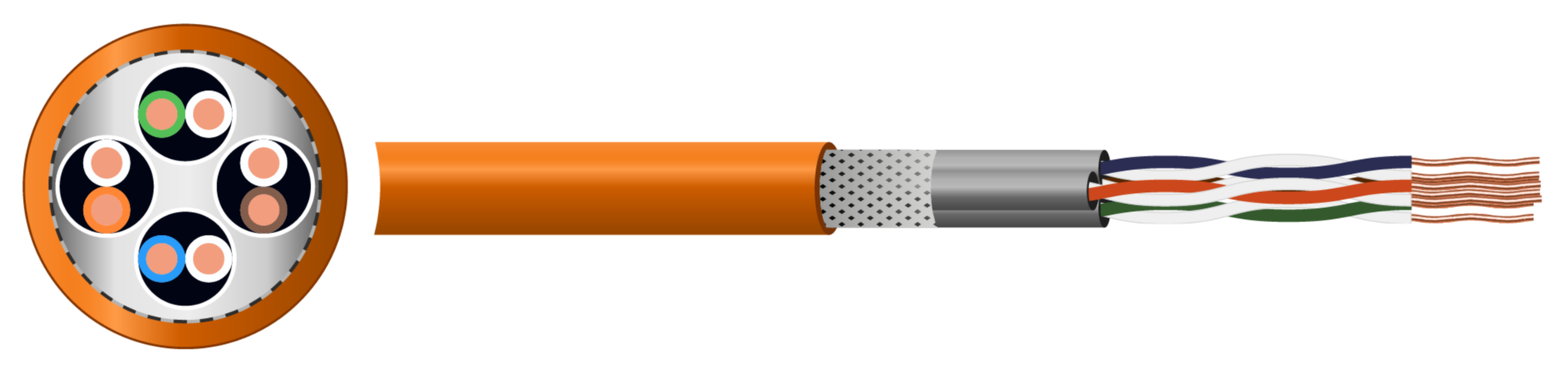

Cat 7 S/FTP 4 Pair LSZH Cable

Description

Data cable for high bandwidth, high speed applications. 10 Gigabit Ethernet over 100m. Individual and overall screening to meet strict Crosstalk requirements.  Backwards compatible with Cat 5e and Cat 6.

Key Features

•
  Minimum Bending Radius Fixed: 4 x overall diameter
  Flexing: 8 x overall diameter
•
  Flame Retardancy BS EN/IEC 60332-3-24 (Cat C)
•
  Temperature Limits Temperature Range: -20°C to +70°C

Construction

• Conductor: Solid Copper Conductor
• Insulation: Foam Polyethylene (FPE)
• Insulation Screen: Aluminium/Polyester Tape (AL/PET) Individually Screened
• Drain Wire: Tinned Copper
• Braiding: Tinned Copper Wire Braiding (TCWB)
• Outer Sheath: Low Smoke Zero Halogen (LSZH)
• Sheath Colour: Orange

Standards

• BS EN/IEC 60332-3-24 (cat C)
• IEC 61156-5
• YD/T1019
• BS EN 50288-4
