Centipede Overhead Line ATF Feeder Cable - Network Rail Certified

Description

Centipede Auto Transformer Feeder (ATF) cable was designed for the Railway industry and is used to deliver improved and upgraded power supplies in comparison to legacy overhead line equipment (OHL)

Centipede ATF is an along track overhead conductor cable to distribute power across the line via the autotransformers and can be used both for aerial and insulated cable routes. Centipede ATF cable is manufactured in accordance with drawing number 148/752/998.

Key Features

• Core Identification Centipede: 415-AL 1
•
  Minimum Bending Radius 9X Overall Diameter
•
  Temperature Limits Temperature Range: -30°C to +70°C
• Drawing Number Centipede: 148/752

Construction

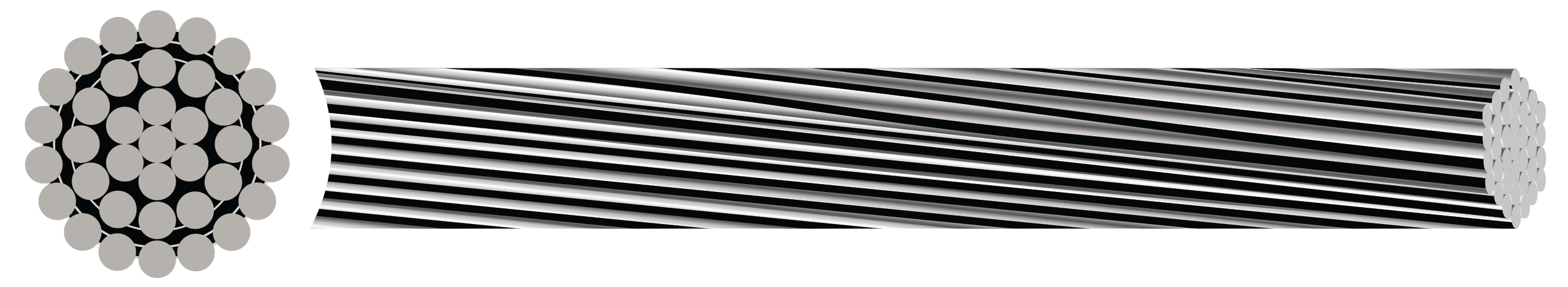

• Conductor: Stranded Aluminium Conductors

Standards

• BS EN 50182
• BS 215-1
• PADS REF: 0091/030481
