Cockroach Overhead Line (AAC) Cable - Network Rail Certified

Description

Cockroach Overhead Line (OHL) cable is suitable for use in the transmission and distribution of overhead line power where high conduction is needed. It comes in both bare aluminium and PVC insulated variants.

The uninsulated variant has excellent corrosion resistance and is suitable for coastal installations. It provides an excellent weight to conduction ratio.
Cockroach OHL is an All Aluminium Conductor (AAC cable). It is mainly used in short-span railway OHL power distribution systems up to 60kV.

PVC Insulated version also available

Key Features

• Core Identification Cockroach:  266-AL1
•
  Minimum Bending Radius 9X Overall Diameter
•
  Temperature Limits Temperature Range: -30°C to +70°C
• Drawing Number Cockroach: 148/045

Construction

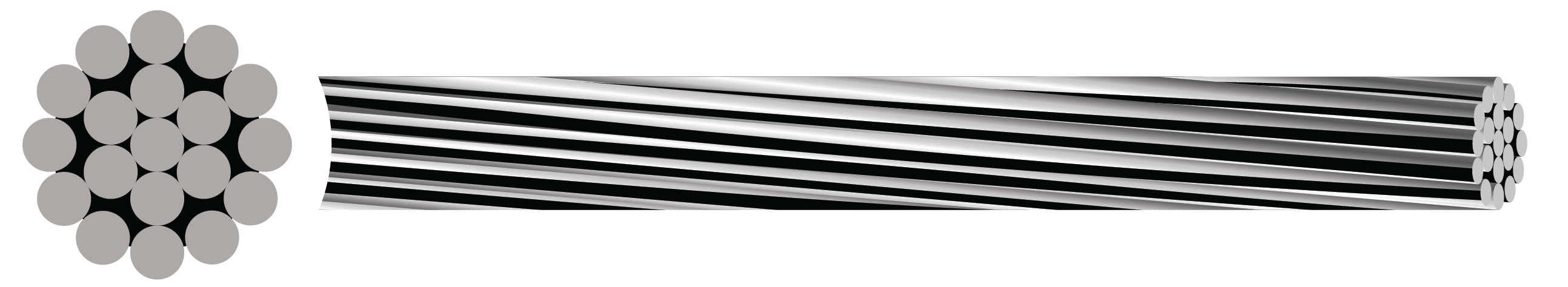

• Conductor: Class 2 Stranded Aluminium

Standards

• BS 215-1
• PADS REF: 0091/010268
• BS EN 50182
• BS EN/IEC 62641
