EAY2Y 0.6/1kV Cable

EAY2Y 0.6/1kV Cable

Description

EAY2Y are Power distribution cables used in power stations , industrial installations, switchgears and local mains. They are low voltage aluminium cables with PVC sheath and HDPE outer sheath most often used in the renewable energy industries. The E-AY2Y is designed for fixed installation underground, in buildings, cable ducts or in open air on tray or racking. They are suitable for use in applications under mechanical stress. The outer sheath is hardwearing, durable and provides flame retardance to IEC/EN 60332-1

Key Features
  • Core Identification
    Core Identification HD 308 S2
  • Voltage Rating
    Voltage Rating 600/1000 Volts
  • Minimum Bending Radius
    Minimum Bending Radius 15 x Overall Diameter
  • Flame Retardancy
    Flame Retardancy BS EN/IEC 60332-1
  • Temperature Limits
    Temperature Limits Temperature Range: -5°C to +70°C

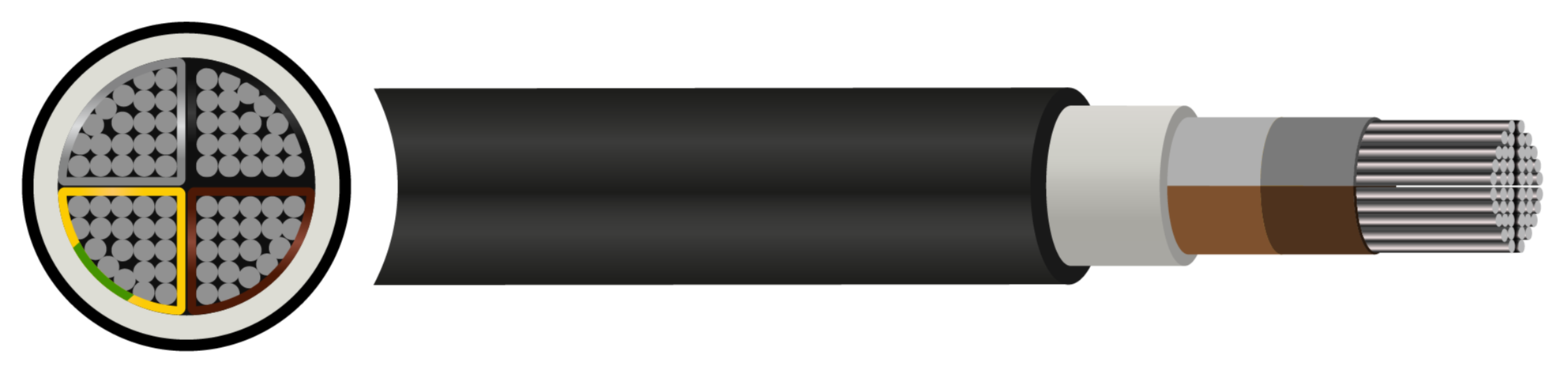

Construction
  • Conductor: Class 2 Aluminimum conductors according to EN 60228
  • Insulation: Polyvinyl Chloride (PVC)
  • Filler: Polyvinyl Chloride (PVC)
  • Outer Sheath: High Density Polyethylene (HDPE)
  • Sheath Colour: Black
Standards
  • BS EN/IEC 60332-1
  • HD 603 S1
  • HD 308 S2
  • BS EN/IEC 60228

Core Colours

Core Colours

1 Core - Green Yellow or Black
4 core - Brown Blue Black Green Yellow
