FG16M16 Power Cable 1.5mm to 630mm

Description

For indoor and outdoor installations, also in wet locations; for fixed installation on masonry or on metallic structures; direct laying in earth is
permitted.

These cables are suitable for general applications in construction works subject to fire reaction requirements; for bundle installations with high risk
of fire due to the high crowd density or due to the long time for displacement or to the big damage to animals or things, according to the standard CEI
64-8/7 having fire reaction class Cca-s1b,d1,a1.

Their use is suitable in places at risk of explosion or fire, which include thermal power stations and power stations, chemical and petrochemical plants, steelworks, fuel installations.

Further information and warnings for the use of these cable is given in the CEI 20-67’s Standard.

Key Features

•
  CPR Compliant Yes
•
  Installation Guidelines Should not be installed at temperatures below 0°C
•
  Voltage Rating 900/1500 V DC
•
  Voltage Rating 600/1200 Volts AC
  1.8 KV DC
•
  Voltage Rating 600/1000 Volts
•
  Minimum Bending Radius 4 x Overall Diameter
•
  Oils, Greases and Chemicals Resistant Yes
•
  Water Resistance AD7
•
  Temperature Limits Ambient Temperature: -15°C to + 90°C
•
  Temperature Limits Maximum short-circuit temperature: 250°C

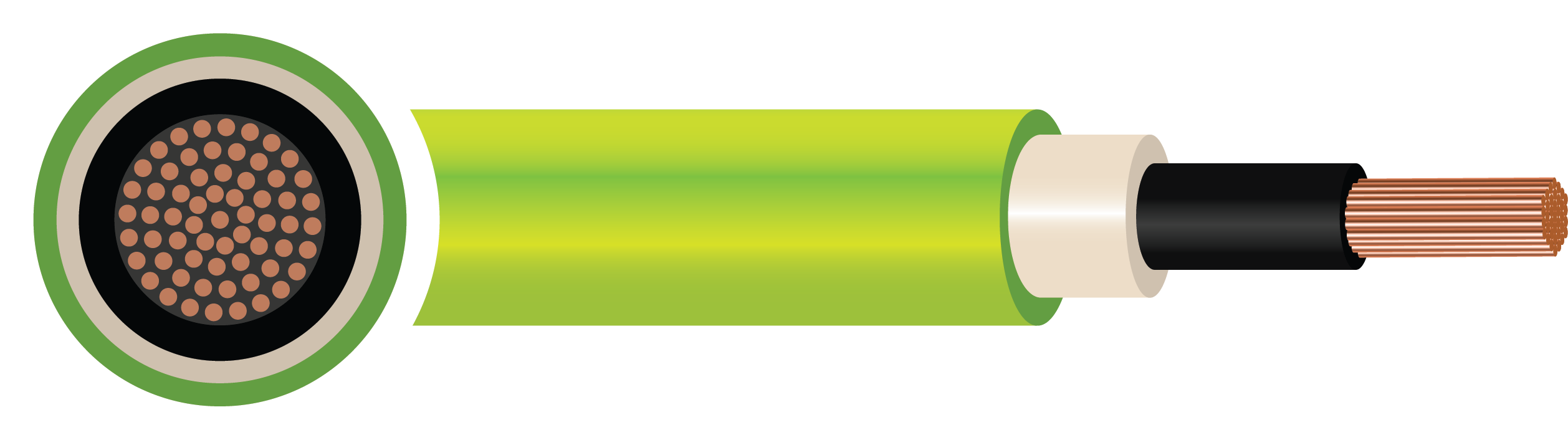

Construction

• Conductor: Flexible, plain copper wire, class 5
• Insulation: G16 Hard Grade Ethylene Propylene Rubber (HEPR)
• Filler: Thermoplastic filler with reduced emission of corrosive gases
• Outer Sheath: M16 quality thermoplastic compound
• Sheath Colour: Green

Standards

• UNI EN 13501-6
• CEI 20-13
• CEI UNEL 35324
• EN 50399
• EN 50575:2014+A1:2016
• IEC 60754-2
• IEC 61034-2
• BS EN/IEC 60332-1-2
• IEC 60228

Core Colours
