FHLR91XC13X and FHLR4GC13X Battery Cable

Description

Flexible Battery cable for use in electric and hybrid cars for power distribution within an EV system. Two harmonised codes cover the range of products.
FHLR91XC13X ranging from 2.5mm to 6mm and FHLR4GC13X from 8mm up to 150mm. Having a TPE outer sheath makes It resistant to motor oil, fuels and hydrolysis, The cable is flame retardant with a high abrasion resistance. Due to the tinned wire copper braid screen, the cable is highly resistant to electromagnetic interference.

Key Features

•
  Voltage Rating Uo: 1000V AC
  Vo: 1500V DC
•
  Minimum Bending Radius Fixed: 6 x overall diameter
  Flexing: 8 x overall diameter
•
  Abrasion/Tear Resistance Yes
•
  Temperature Limits -40°C to + 150°C (3000h)

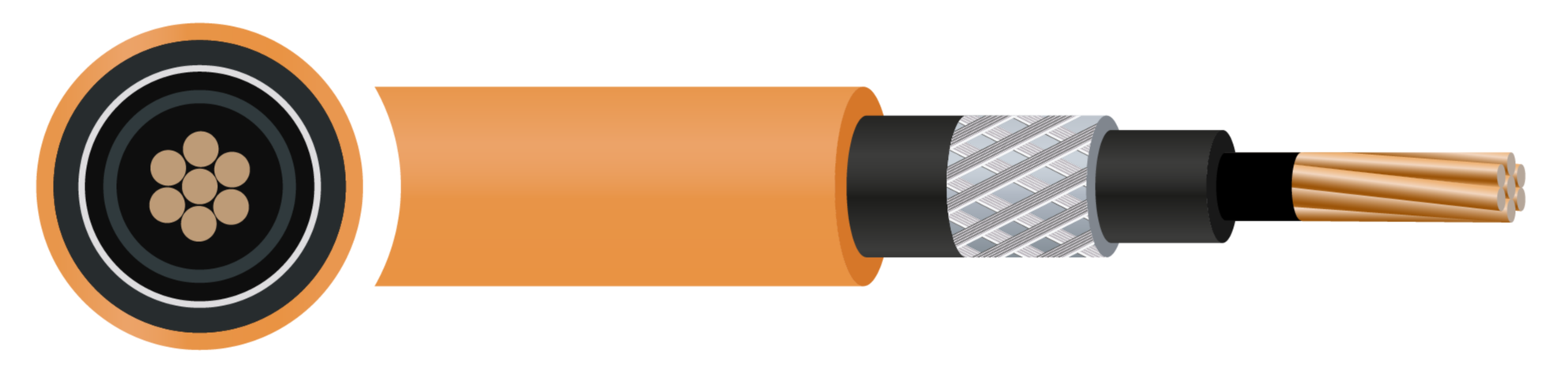

Construction

• Conductor: Class 2 stranded copper conductor
• Insulation: 6mm and under: Cross-linked irradiation Polyolefin (XLPO)
  Above 6mm: Ethylene Vinyl Acetate (EVA)
• Metallic Screen: Tinned Copper Wire Braid (TCWB)
• Tape: Aluminium Tape
• Outer Sheath: Vulcanised Thermoplastic Elastomer (TPE-E)
• Sheath Colour: Orange

Standards

• ISO 19642-9 (Class D)
