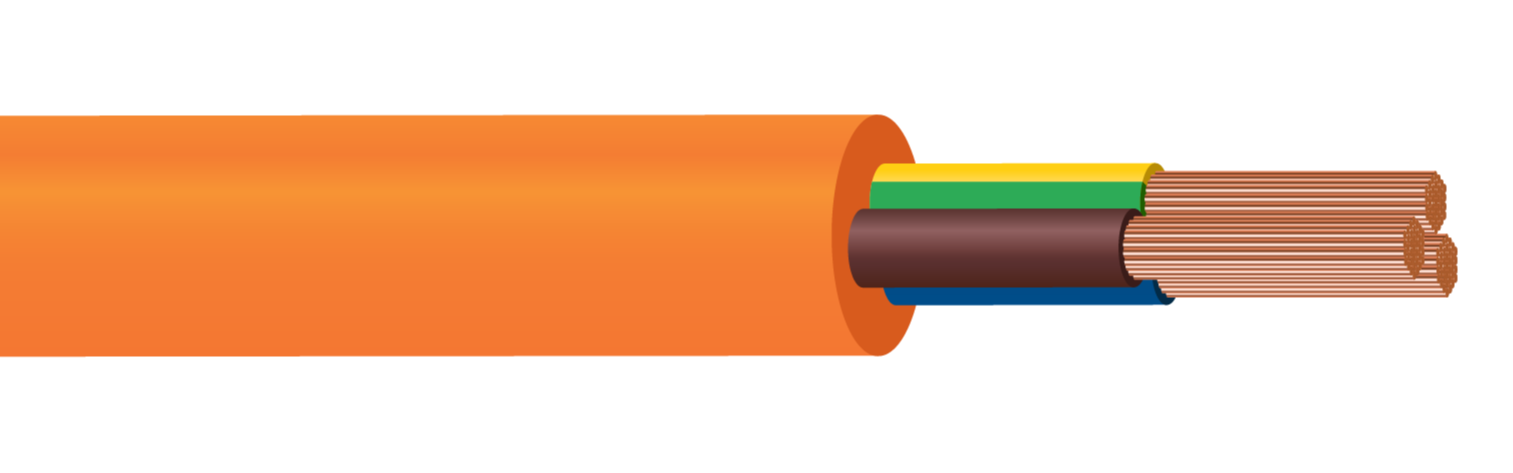

H05BQ-F Cable 0.5mm² to 1mm²

Description

H05BQ-F cables are robust polyurethane (PUR) sheathed cables suitable for a wide range of industrial applications. H05BQ-F cable is rated to 300/500V and offered in multicore sizes up to 1mm

H05BQ-F cables are often used within food preparation,  agriculture industries, chemical plants and construction sites, as well as within offices and business premises. They are used for equipment such as cleaning equipment, food preparation and cooking appliances, hand held power tools, heat and inspection lamps, electrical saws and other equipment where they may experience medium to low mechanical stresses.

The polyurethane outer sheath offers protection from fats and oils, and chemicals, and is proven to prevent the growth and spread of microbial bacteria and offers a wide operating temperature range of -40oC to +90oC. H05BQ-F cables are also commonly used in food production washdowns due to a water resistance rating of AD7. THe cable is mainly designed for internal use, but equipment using this cable cab be used for occasional short use externally.

Key Features

•
  Voltage Rating 300/500 Volts
•
  Minimum Bending Radius 5 x Overall Diameter
•
  Temperature Limits Temperature Range: -40°C to +90°C
  Maximum Short Circuit Temperature: +250°C

Construction

• Conductor: Class 5 flexible, stranded copper
• Insulation: Cross-linked Ethylene Propylene Rubber (EPR)
• Outer Sheath: Polyurethane (PUR)
• Sheath Colour: Orange

Standards

• BS EN 50363-1
• BS EN 50525-2-21
• BS EN/IEC 60228
• BS EN 50363-10-2

Core Colours
