H07RN-8-F EN 50525-2-21 Flexible Rubber Cable

Description
HO7RN-8F is Flexible Rubber Cable specifically designed for use in fresh water up to 10 m water depth and a maximum water temperature of 40°C for connection of submersible pumps and similar applications. Not suitable for underwater power transmission where mechanical damage might occur and represent a potential danger. The cable can be used for connections in industrial or agricultural workshop apparatus, electric site tools, electric appliances, portable motors and generators on building sites where remote power is needed. Suitable for applications up to 1kV in protected fixed installations.
Key Features
-
Voltage Rating 450/750 Volts
-
Minimum Bending Radius Fixed: 4 x overall diameter
Flexing: 6 x overall diameter -
Flame Retardancy BS EN/IEC 60332-1-2
-
Temperature Limits Fixed: -40°C to +60°C
Flexed: -15°C to +60°C

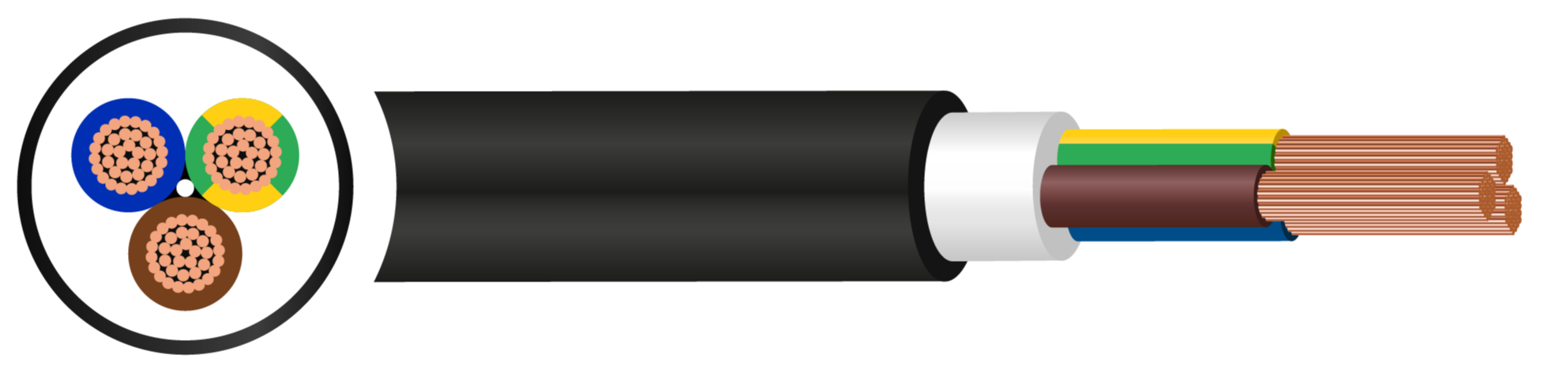

Construction
-
Conductor: Class 5 Flexible stranded copper
-
Insulation: Rubber Compound Type EI4
-
Outer Sheath: Polychloroprene Rubber Compound (PCP)
-
Sheath Colour: Black
Standards
-
BS EN 50525-2-21
-
BS EN/IEC 60332-1-2
-
DIN VDE 0295 / IEC 60228
Core Colours
1 core - Black
2 core - Brown Blue
3 core - Brown Blue Green Yellow
4 core - Brown Blue Grey Green Yellow
5 core - Brown Blue Grey Black Green Yellow
7 and more - Black with White numbers plus Green Yellow
