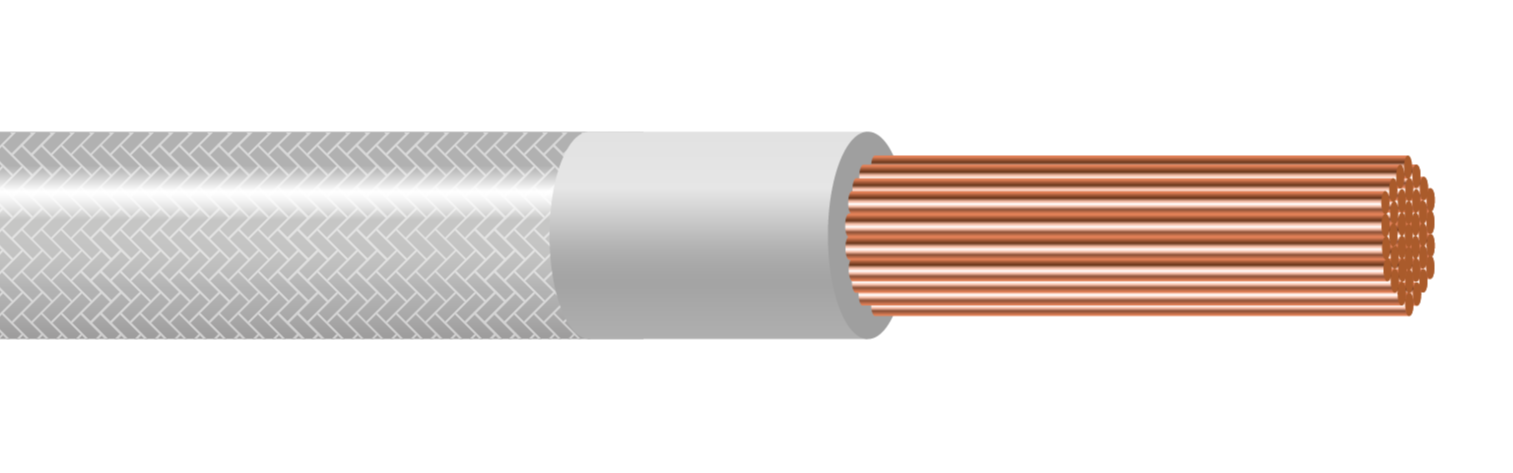

High Temperature Silicone Cable SIAF/GL Flexible Single Core Cable - 0.5mm² to 300mm²

Description

High temperature single core silicone cable with fibre glass outer sheath. SIAF cables are heat resistant  up to 180°C and can also be installed at temperatures as low as -60°C. These cables are low smoke zero halogen, organically inert, flame retardant providing excellent weather resistance.  SIAF cable are suitable for both internal and external installations and are often used in power plants, as well as a wide range of in food and medical applications in processing, packaging, refrigeration. They are heavily used the oil and gas sectors onshore and offshore.

Key Features

•
  Voltage Rating Up to 6mm² : 300/500V
  10mm² and above: 0.6/1kV, when protected
•
  Minimum Bending Radius 4 x Overall Diameter
•
  Temperature Limits Temperature Range: -60°C to +180°C

Construction

• Conductor: Class 5 Flexible Tinned Copper
• Insulation: Silicone Rubber
• Outer Sheath: Fibre Glass Braid

Standards

• BS EN/IEC 60228
• BS EN 50525-2-41

Core Colours
