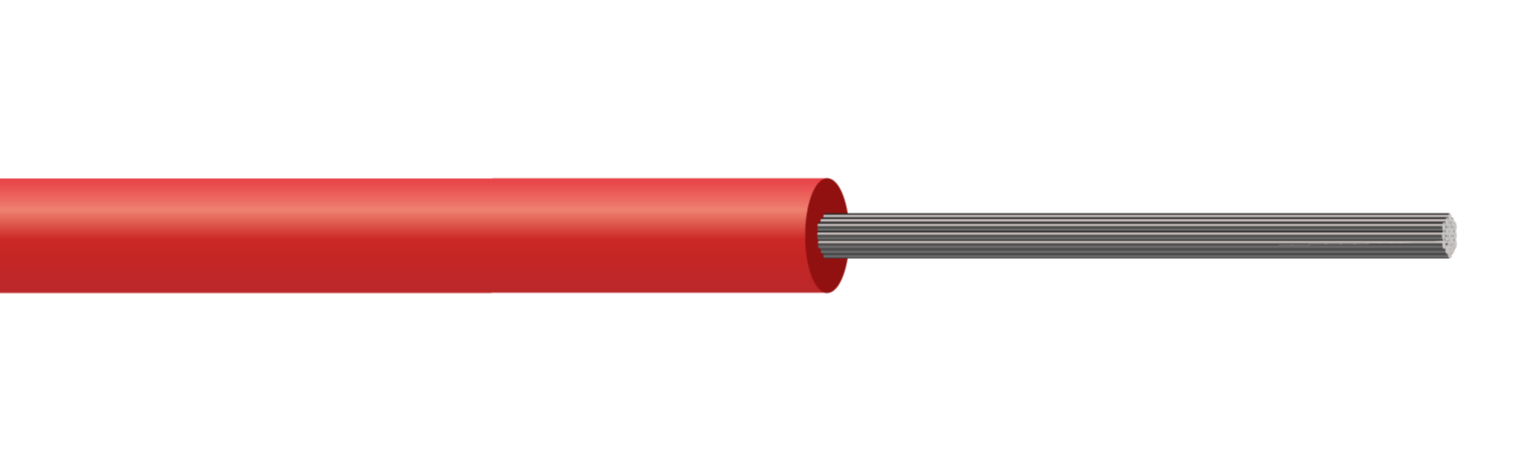

High Temperature Silicone Cable SIA/SIAF 0.5mm² to 300mm²

Description

SIA and SIAF cables are single core class 1 or class 5 flexible cables in a silicone outer sheath. They are designed for use in environments with sustained temperature extremes and fluctuations, making them suitable for a wide range of industrial applications such as power plants, ships and aircrafts, furnaces and ovens. As silicone rubbers don't support fungal or bacterial growth they are also used in  food processing, refrigeration and medical industries. SIA and SIAF cables are also widely used in the Oil, Gas & Petrochemicals industries.

The SIA and SIAF cables are rated to 300/500V for core sizes up to 6mm2, with core sizes of 10mm2 and above rated at 600/1000V.. SIA and SIAF cables are heat resistant up to 180°C and can also be employed at temperatures as low as -60°C. These silicon cables are low smoke zero halogen and are suitable for use in public buildings under CPR 2017

Key Features

•
  Voltage Rating SIA: 300/500V
  SIAF: 0.25mm² to 6mm² 300/500V
  10mm² and above: 0.6/1kV

•
  Minimum Bending Radius 4 x Overall Diameter
•
  Temperature Limits Temperature Range: -60°C to +180°C

Construction

• Conductor: Class 1 solid (plain or tinned) copper conductor
  Class 5 flexible (plain or tinned) copper conductor
• Insulation: Silicone Rubber

Standards

• BS EN/IEC 60228
• BS EN 50525-2-41

Core Colours
