IFSI-EMC,FXQJ-EMC Power Cable-1.5mm to 240mm

Description

EMC shielded power cable with copper conductors. Halogen free, flame retardant and self-extinguishing in the event of fire. Smoke in the event of fire is minimal, transparent and not harmful to electronic equipment. The cable can be used for fixed installation noth indoors and outdoors, in pipes, ground or water.

Suitable for switchgear and potentially explosive areas. The copper screen has 100% coverage and meets EMC Directive with appropriate installation.

Key Features

•
  CPR Compliant Yes
•
  Installation Guidelines For Installation Temperatures below 0°C it is recommended that the cable be stored above 0°C for 24 hours prior to installation
•
  Voltage Rating 600/1000 Volts
•
  Minimum Bending Radius 12 x Overall Diameter
•
  Temperature Limits Ambient Temperature, Fixed -20°C to +90°C

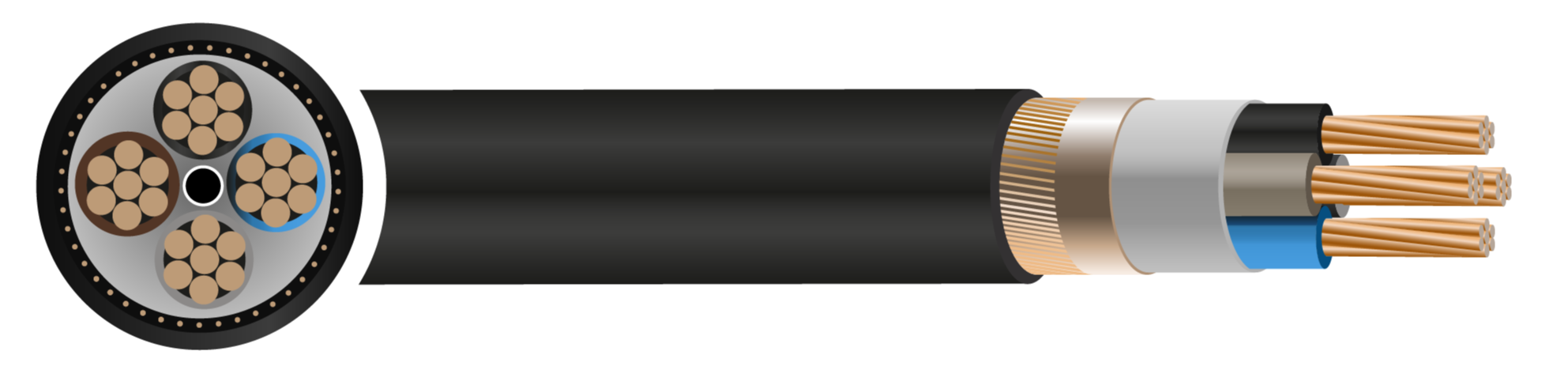

Construction

• Conductor: Class 1 or 2 Copper Conductor to BS EN 60228
• Insulation: Cross Linked polyethylene (XLPE)
• Bedding: Halogen-Free plastic tape
• Concentric Conductor: Copper foil tape and Copper Wires with counter helix of Copper Tape
• Sheath: Halogen free thermoplastic polymer compound
• Sheath Colour: Black

Standards

• HD 604 S1-5D
• IEC 60228
• IEC 60502-1

Core Colours
