Li2YCYv

Description

Li2YCYv is an Overall screened multi pair cable for Data, and Instrumentation equipment. It can be used as signalling cable, control cable, It is used for measurements and transmission of low sensitive signals with high bit rates.

This cable is particularly suitable for wiring data systems with transmission rates up to 10 Megabits per second and is qualified for RS 422 and RS 485 interfaces. This cable type is suitable for outdoors, as well as direct burial in the ground. Intended for limited flexible use, and for fixed installation in dry or damp interiors.

Li2YCYv is NOT for power applications-

Key Features

• Core Identification Pair Identification acc. to DIN 47100
•
  Voltage Rating 250 Volts
•
  Minimum Bending Radius Fixed: x Overall Diameter
  Flexing:15 x Overall Diameter
•
  Flame Retardancy VDE 0482-332-2-1
•
  Flame Retardancy IEC/EN 60332-1-2
•
  Temperature Limits Working Temperature, Fixed: -30°C up to +80°C


  Working Temperature, Flexing: -5°C up to +70°C

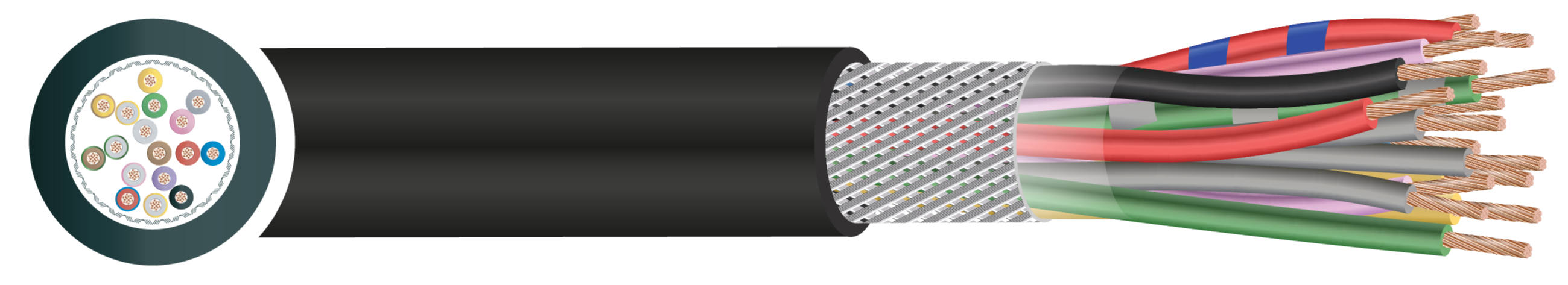

Construction

• Conductor: Plain copper conductors, 7 cores, Class 2
• Insulation: Polyethylene (PE)
• Screen: Tinned Copper Wire Braiding
• Outer Sheath: Polyvinyl Chloride (PVC)
• Sheath Colour: Black

Standards

• VDE 0812
• UV Resistant: ISO 4892-2
• VDE 0295
• UV Resistant: ISO 4892-3
• Core and pair colours according to DIN 47100
• VDE 0482-332-2-1
• IEC 60332-1
• IEC 60228
