LUL Approved Screened Signalling Cable - Type D & E - EPR Insulation, LSZH Sheath - 0.75mm² to 35mm²

Description

Screened signalling cable especially manufactured for Network Rail. Approved for use by London Underground Limited (LUL) for use in London Tube installations

Key Features

•
  Voltage Rating 650/1100 Volts
•
  Minimum Bending Radius 6 x overall diameter
•
  Flame Retardancy BS EN 60332-1-2
•
  Temperature Limits Temperature Range: -15°C to +85°C
•
  London Underground Approved LUL Approved Cable

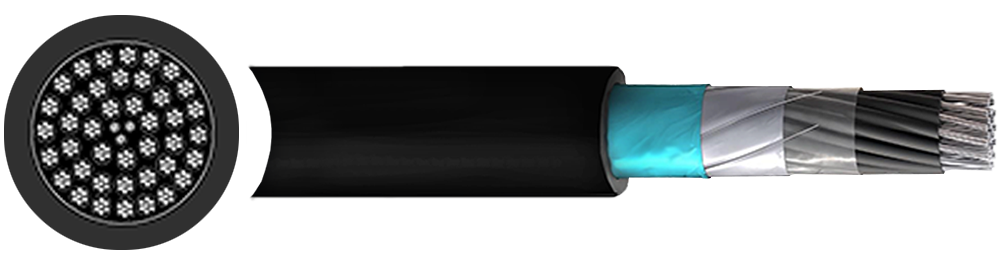

Construction

• Conductor: Class 2 Tinned Copper
• Insulation: Ethylene Propylene Rubber (EPR)
• Screen: Collective Aluminium/mylar tape with 0.5mm drain wire
• Separator: Polyester Tape (PET)
• Outer Sheath: Low Smoke Zero Halogen (LSZH)
• Sheath Colour: Black

Standards

• BS EN/IEC 60228
• LUL G7250
• Emissions & Flame Propagation to S1-085
• BS EN/IEC 60332-1-2

Core Colours
