MV Aerial Bundle Cable (ABC) Unscreened 12.7/22kV - 35mm² to 185mm²

Description

Aerial bundled cables (ABC) are designed for overhead power distribution, specifically for low voltage applications. They offer a higher safety level, reduced maintenance, and lower power losses compared to bare conductors. ABC cables are commonly used in rural areas or urban locations where burying cables is not feasible.

Key Features

•
  Voltage Rating 12.7/22 (24)kV
•
  Minimum Bending Radius 12 x Overall Diameter
•
  Temperature Limits Maximum operating temperature: +90°C

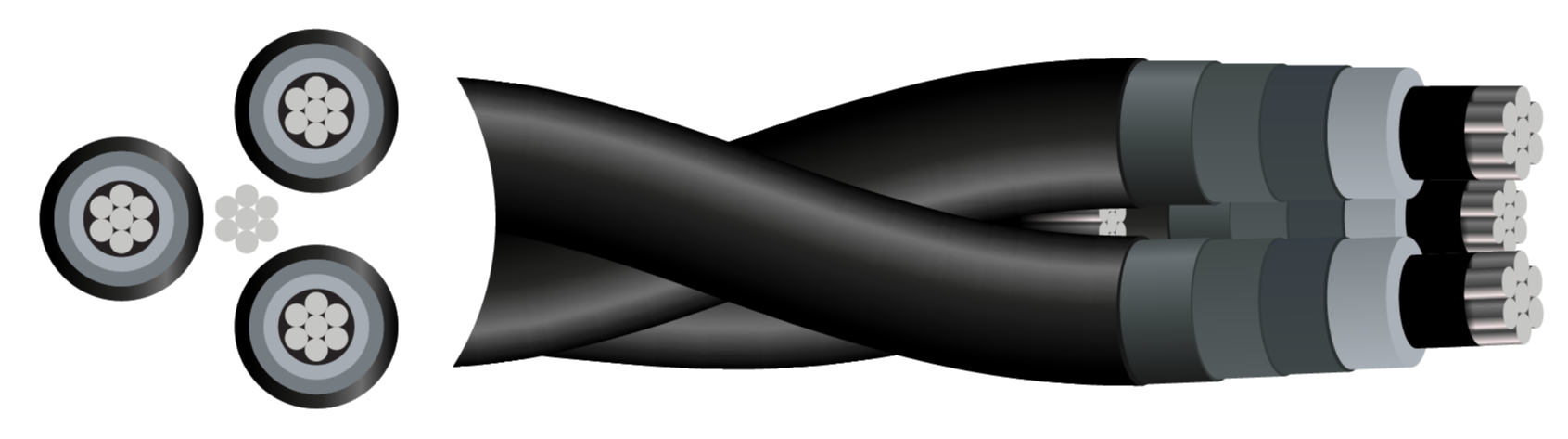

Construction

• Conductor: Class 2 Stranded Aluminium Conductor
• Conductor Screen: Extruded semi-conductive screen
• Insulation: Cross Linked polyethylene (XLPE)
• Insulation Screen: Extruded semi-conductive screen
• Water Blocking: Semi-conductive swellable tape
• Outer Sheath: High Density Polyethylene (HDPE)
• Sheath Colour: Black
• Support Conductor: Galvanised Steel Wires

Standards

• BS 2627
• AS/NZS 3599-2
• IEC 60502
• IEC 60228
