MV IEC 60502-2 Screened Aerial Bundle Cable (ABC) 19/33kV

Description

Aerial bundled cables (ABC) are designed for overhead power distribution, specifically for low voltage applications. They offer a higher safety level, reduced maintenance, and lower power losses compared to bare conductors. ABC cables are commonly used in rural areas or urban locations where burying cables is not feasible.

Key Features

•
  Voltage Rating 19/33 (36)kV
•
  Minimum Bending Radius 15 x Overall Diameter
•
  Temperature Limits Maximum operating temperature: +90°C

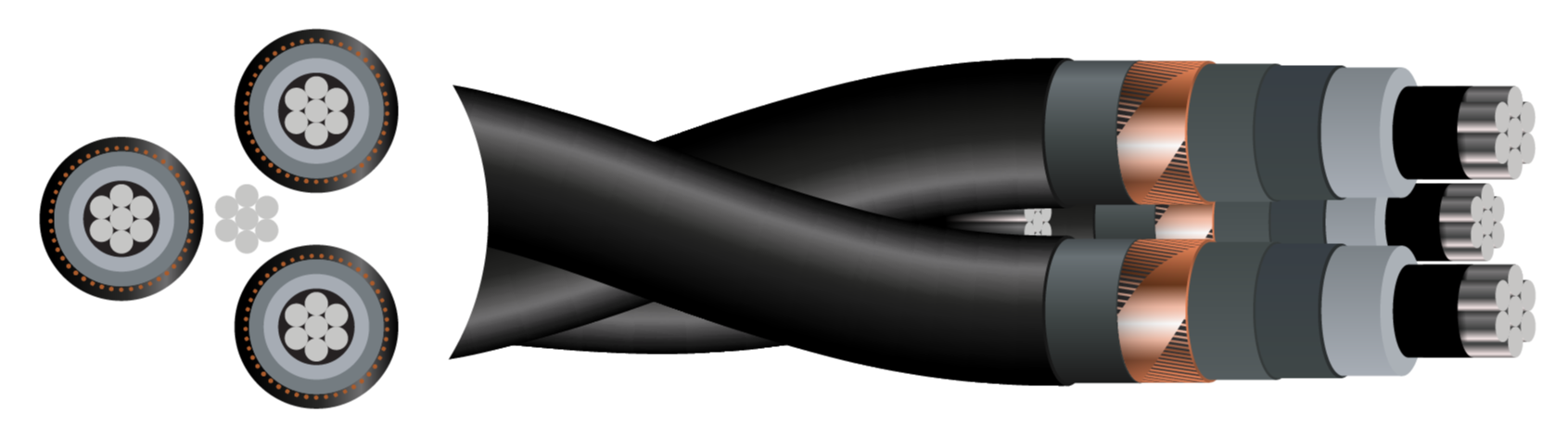

Construction

• Phase Conductor: Class 2 Stranded Aluminium
• Conductor Screen: Extruded semi-conductive screen
• Insulation: Cross Linked polyethylene (XLPE)
• Insulation Screen: Extruded semi-conductive screen
• Metallic Screen: Copper wires or copper tape screen
• Waterblocking Tape: Semi-conductive swellable tape
• Outer Sheath: High Density Polyethylene (HDPE)
• Sheath Colour: Black
• Support Conductor: Galvanised Steel Wires

Standards

• AS/NZS 3599-1
• IEC 60502-2
• IEC 60228
