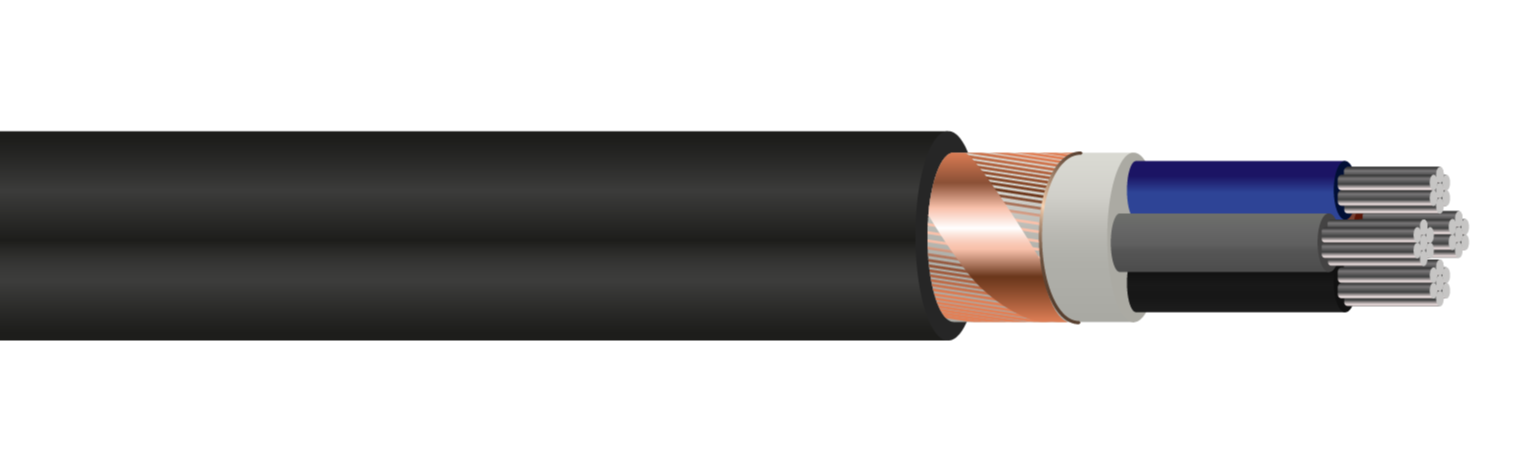

N1XE-AR Cable 16mm² to 50mm²

Description

Swedish standard N1XE-AR copper power cables are a low voltage power cable with a rating of 0.6/1kV primarily for use in fixed installations. N1XE-AR cables can withstand harsh environmental conditions operating in Sweden with a temperature range of -10°C to +90°C.

N1XE-AR cables are manufactured in accordance with SS 424 14 18, and designed for external use. The UV resistant Polyethylene outer sheath allows for above-ground applications but it is also suitable for installation in buried cable ducts. The cable is suitable for installation in environments where it will be under mechanical stress during both installation and usual operations.

N1XE-R/U is mainly used in power stations, industrial installation, switchgears and local mains power distribution. It can be installed in a wide range of scenarios. Internally with business and domestic premises, within cable ducts, in the open air and in water.

Key Features

•
  Voltage Rating 600/1000 Volts
•
  Minimum Bending Radius 12 x Overall Diameter
•
  Temperature Limits Operating temperature: -10°C to +90°C
  Maximum Conductor temperature: +90°C

Construction

• Conductor: Class 2 Stranded Aluminium Conductor
• Insulation: Cross Linked polyethylene (XLPE)
• Outer Sheath: Polyethylene (PE)
• Sheath Colour: Black or Yellow

Standards

• HD 603 S1
• IEC 60228

Core Colours
