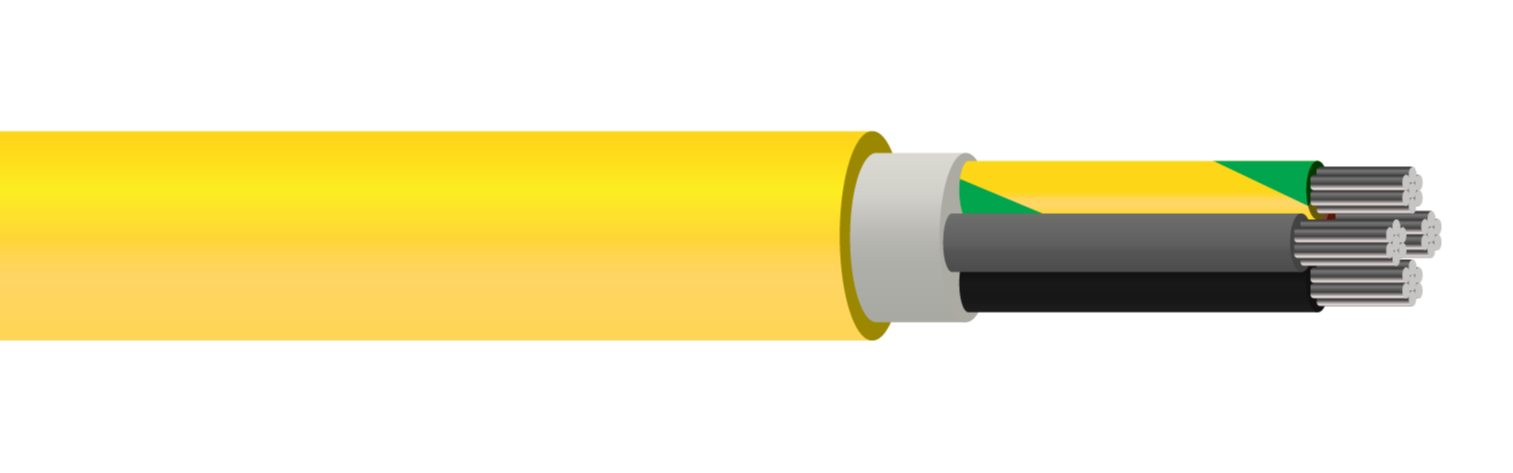

N1XE-R/U Cable 10mm² to 16mm²

Description

Swedish standard N1XE copper power cables are a low voltage power cable with a rating of 0.6/1kV primarily for use in fixed installations. They are available with black numbered cores for N1XE-U or colour-coded cores as N1XE-R. N1XE cables are mainly specified in power stations and other heavy industry plant. For these highly regulated installations, they are available with a yellow or black outer Polyethylene (PE) sheath.

N1XE cables can withstand harsh environmental conditions operating in Sweden with a temperature range of -50°C to +90°C.

The N1XE cables are manufactured in accordance with SS 424 14 18, are designed for external use. The UV resistant outer sheath allows for above-ground applications but it is also suitable for installation in buried cable ducts.

The N1XE-R/U is mainly used for power distribution in power stations, industrial installation and switchgears, as well as in local mains distribution.

Key Features

•
  Voltage Rating 600/1000 Volts
•
  Minimum Bending Radius 12 x Overall Diameter
•
  Temperature Limits Minimum laying temperature: -20°C
  Operating temperature: -50°C to +90°C
  Maximum Conductor temperature: +90°C

Construction

• Conductor: Class 1 solid copper conductor
  Class 2 stranded copper conductor
• Insulation: Cross Linked polyethylene (XLPE)
• Inner Sheath: Rubber Compound
• Outer Sheath: UV resistant Polyethylene compound (PE)
• Sheath Colour: Black or Yellow

Standards

• SS 424 14 18
• BS EN/IEC 60228
• HD 603 S1

Core Colours
