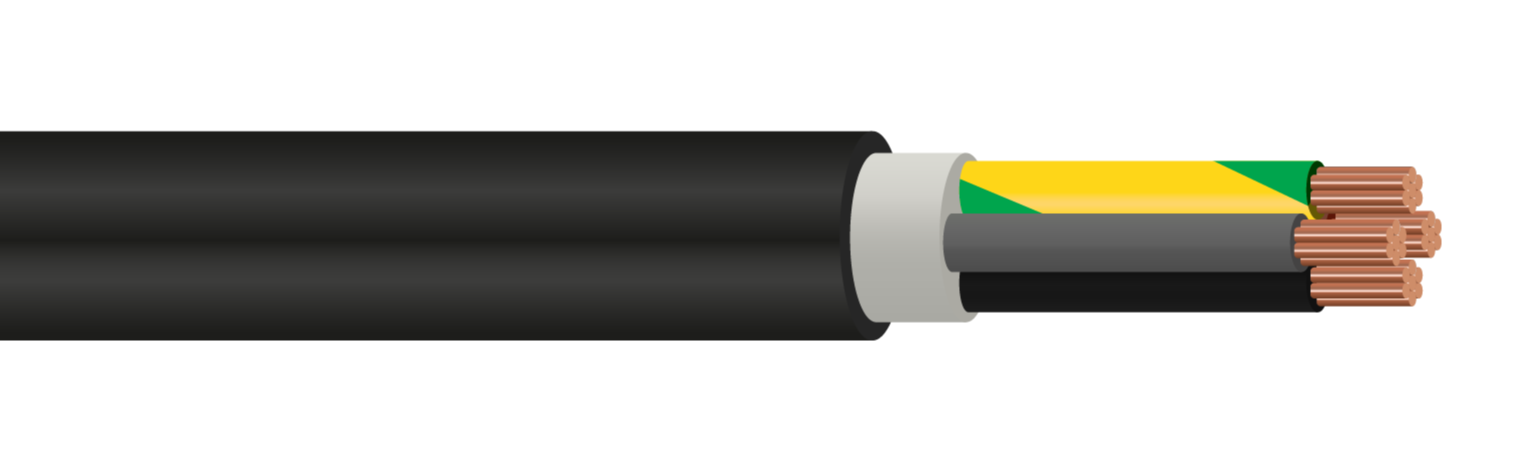

N1XV-R/U Cable-10mm² to 300mm²

Description

The N1XV-R/U is a Swedish LV power cable used for local mains connections, switchgear and industrial plant power. CCCL provide N1XV-R with colour-coded cores – but the N1XV-U variant can also be supplied if required. N1XV has a wide temperature range to match the weather conditions of Sweden. The cable is designed to be used for external fixed installations and has a UV-resistant PVC outer sheath. Though N1XV is flame retardant so can also be installed internally where it meets the criteria of CPR 2017

Key Features

•
  Voltage Rating 600/1000 Volts
•
  Minimum Bending Radius Single Core 15 x Overall Diameter
  Multicore 12 x Overall Diameter
•
  Flame Retardancy BS EN/IEC 60332-1-2
•
  Temperature Limits Temperature Range: -30°C to +80°C

Construction

• Conductor: Class 1 Solid or Class 2 Stranded Copper conductor
• Insulation: Cross Linked polyethylene (XLPE)
• Outer Sheath: Polyvinyl Chloride (PVC)
• Sheath Colour: Black

Standards

• HD 308 S2
• BS EN/IEC 60332-1-2
• BS EN/IEC 60228

Core Colours
