NA2XS2Y 6/10 (12)kV Cable

Description

Medium voltage power cables with aluminium Conductor for distribution networks. This cable is used extensively in the renewables and datacentre sectors. NA2XS2Y cable is suitable for external installation. Cables can be fixed on cable trays, within conduits or fixed to walls and is suitable for burial in ducts. The cable has a UV Resistant outer sheath.

Key Features

•
  Voltage Rating 6/10 (12)kV
•
  Minimum Bending Radius 15 x Overall Diameter
•
  UV/Ozone Resistance Yes
•
  Temperature Limits Ambient Temperature: -20°C to +60°C

  Conductor Operating Temperature: +90°C

  Short Circuit Temperature up to 5 sec: 250°C

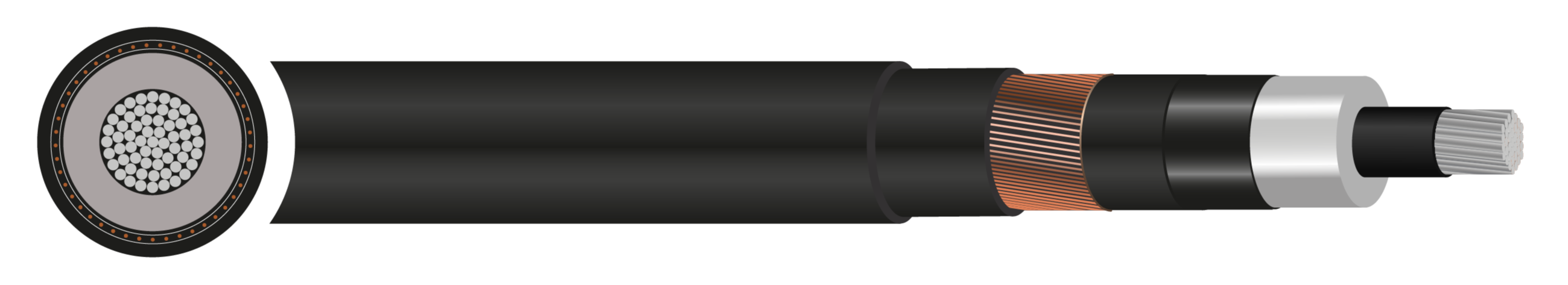

Construction

• Conductor: Class 2 Stranded Aluminium Conductor
• Conductor Screen: Semi-Conductive material
• Insulation: Cross Linked polyethylene (XLPE)
• Insulation Screen: Semi-conductive material (bonded)
• Screen: Copper wires and copper tape
• Outer Sheath: Medium Density Polyethylene (MDPE)

• Sheath Colour: Red or Black

Standards

• IEC 60332-1-2
• IEC 60502-2
• IEC 60228
• UV Resistant: ISO 4892-3
• BS EN 60332-1-2
