NA2XS(F)2Y 6/10 (12)kV Cable

Description

Medium voltage power cables with aluminium Conductor for distribution networks. This cable is used extensively in the renewables and datacentre sectors. NA2XS2Y cable is suitable for external installation. Cables can be fixed on cable trays, within conduits or fixed to walls and is suitable for burial in ducts. The cable has two waterblocking layers and a UV Resistant outer sheath.

Key Features

•
  Voltage Rating 6/10 (12)kV
•
  Minimum Bending Radius 15 x Overall Diameter
•
  UV/Ozone Resistance Yes
•
  Water Resistance Yes
•
  Temperature Limits Ambient Temperature: -20°C to +60°C

  Conductor Operating Temperature: +90°C

  Short Circuit Temperature up to 5 sec: 250°C

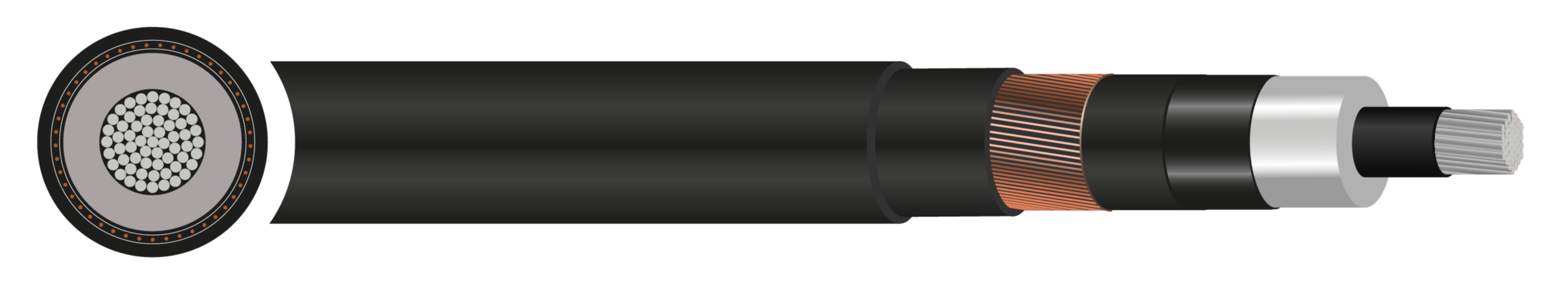

Construction

• Conductor: Class 2 Stranded Aluminium Conductor
• Conductor Screen: Semi-Conductive material
• Insulation: Cross Linked polyethylene (XLPE)
• Insulation Screen: Semi-Conductive (XLPE)
• Longditudinal Waterblocking: Semi-conductive swellable tape
• Metallic Screen: Copper Wires plus Copper tape
• Longditudinal Water Blocking: Swellable tapes
• Outer Sheath: Medium Density Polyethylene (MDPE)

• Sheath Colour: Red or Black

Standards

• IEC 60332-1-2
• IEC 60502-2
• IEC 60228
• BS EN 60332-1-2
• UV Resistant: ISO 4892-3
