NA2XS(FL)2Y 6/10 (12)kV Cable

Description

Medium voltage power cables with aluminium Conductor for distribution networks. This cable is used extensively in the renewables and datacentre sectors. NA2XS(FL)2Y cable is suitable for external installation. Cables can be fixed on cable trays, within conduits or fixed to walls and is suitable for burial in ducts. The cable has two longditudinal waterblocking layers and a radial waterblocking aluminium tape which is bonded to a UV Resistant MDPE outer sheath.

Key Features

•
  Voltage Rating 6/10 (12)kV
•
  Minimum Bending Radius 15 x Overall Diameter
•
  UV/Ozone Resistance Yes
•
  Water Resistance Yes
•
  Temperature Limits Ambient Temperature: -20°C to +60°C

  Conductor Operating Temperature: +90°C

  Short Circuit Temperature up to 5 sec: 250°C

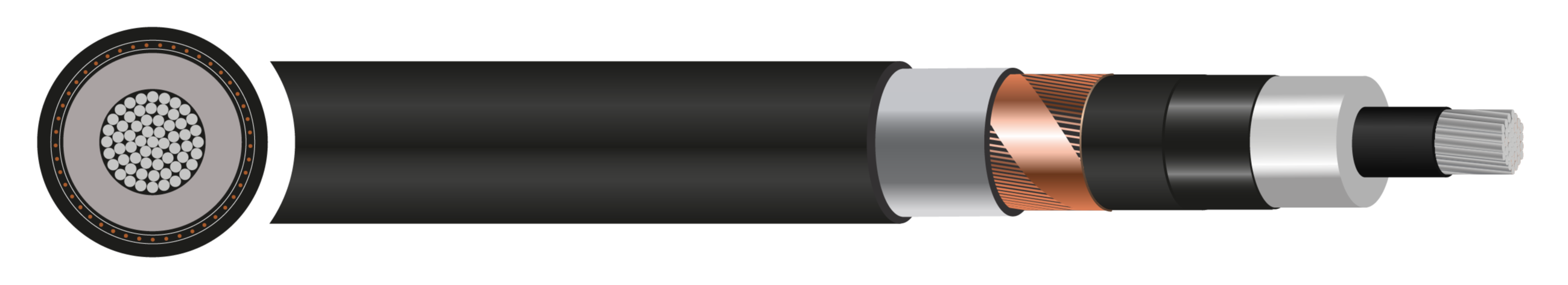

Construction

• Conductor: Class 2 Stranded Aluminium Conductor
• Conductor Screen: Semi-Conductive material
• Insulation: Cross Linked polyethylene (XLPE)
• Insulation Screen: Semi-conductive material (bonded)
• Longditudinal Waterblocking: Swellable Tapes

• Screen: Copper wires and copper tape
• Waterblocking Tape: Al/PET (Aluminium/Polyester) Tape bonded to sheath
• Outer Sheath: Medium Density Polyethylene (MDPE)

• Sheath Colour: Red or Black

Standards

• IEC 60332-1-2
• IEC 60502-2
• IEC 60228
• UV Resistant: ISO 4892-3
• BS EN 60332-1-2
