NA2XS(FL)H 6/10 (12)kV Cable

Description

Medium voltage power cables with aluminium Conductor for distribution networks. This cable is used extensively in the renewables and datacentre sectors. NA2XS(FL)H cable is suitable for external installation. Cables can be fixed on cable trays, within conduits or fixed to walls and is suitable for burial in ducts. The cable has two longditudinal waterblocking layers and a UV Resistant LSZH outer sheath.

Key Features

•
  Voltage Rating 6/10 (12)kV
•
  Minimum Bending Radius 15 x Overall Diameter
•
  UV/Ozone Resistance Yes
•
  Water Resistance Yes
•
  Temperature Limits Ambient Temperature: -20°C to +60°C

  Conductor Operating Temperature: +90°C

  Short Circuit Temperature up to 5 sec: 250°C

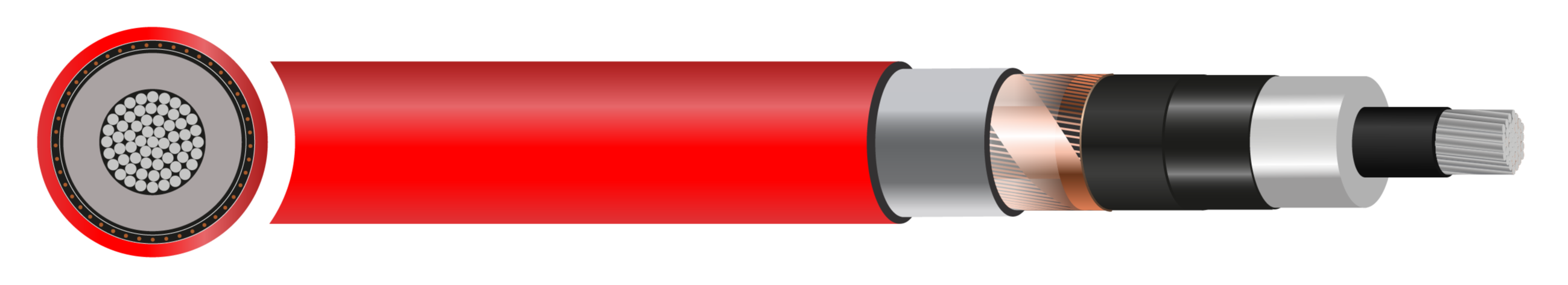

Construction

• Conductor: Class 2 Stranded Aluminium Conductor
• Conductor Screen: Semi-Conductive material
• Insulation: Cross Linked polyethylene (XLPE)
• Insulation Screen: Semi-conductive material (bonded)
• Longditudinal Waterblocking: Semi-conductive swellable tape
• Metallic Screen: Copper Wires plus Copper tape
• Tape: Longditudinal Water Blocking Tape
• Outer Sheath: Low Smoke Zero Halogen (LSZH)
• Sheath Colour: Red or Black

Standards

• BS EN 60332-3-24 Cat C
• UV Resistant: EN 50396
• IEC 61034-1
• IEC 60754-1
• IEC 60754-2
• BS EN 60332-1-2
• IEC 60228
• IEC 60502-2
