NA2XSH 18/30 (36)kV Cable

Description

UV resistant Medium voltage cables for distribution networks; also for connection to generation units and plant and process connection. LSZH outer sheath allows internal and external installation including directly in ground and in cable ducts.

Key Features

•
  Voltage Rating 18/30 (36)kV
•
  Minimum Bending Radius 15 x Overall Diameter
•
  UV/Ozone Resistance Yes
•
  Temperature Limits Ambient Temperature: -20°C to +60°C

  Conductor Operating Temperature: +90°C

  Short Circuit Temperature up to 5 sec: 250°C

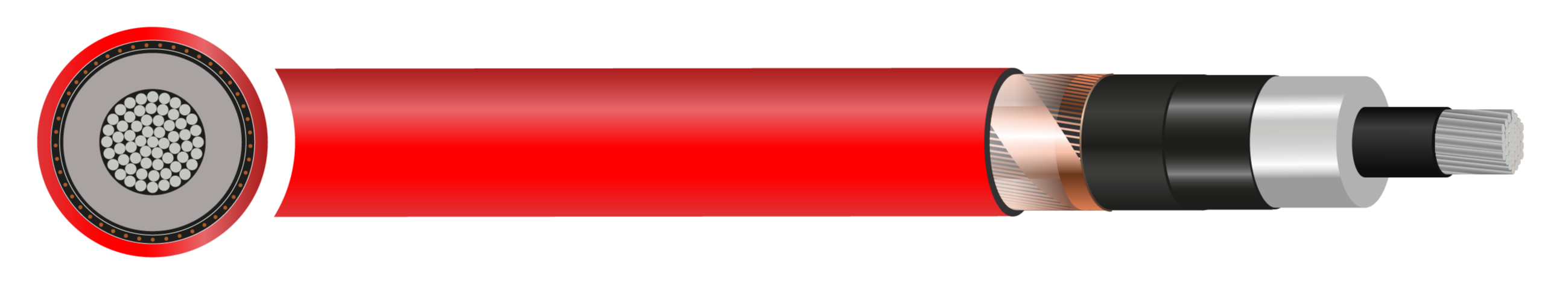

Construction

• Conductor: Class 2 Stranded Aluminium Conductor
• Conductor Screen: Semi-Conductive material
• Insulation: Cross Linked polyethylene (XLPE)
• Insulation Screen: Semi-Conductive (XLPE)
• Filler: LSZH (Low Smoke Zero Halogen)
• Metallic Screen: Copper Wires plus Copper tape
• Outer Sheath: Low Smoke Zero Halogen (LSZH)
• Sheath Colour: Red

Standards

• IEC/EN 60754-1/2
• BS EN/IEC 60332-1-2
• IEC/EN 61034-1/2,
• IEC 60228
• IEC 60502-2
