NA2XSH 6/10 (12)kV Cable

Description

Medium voltage power cables with aluminium Conductor for distribution networks. This cable is used extensively in the renewables and datacentre sectors. NA2XSH cable is suitable for external installation. Cables can be fixed on cable trays, within conduits or fixed to walls and is suitable for burial in ducts. The cable has a Low smoke zero halogen UV Resistant outer sheath.

Key Features

•
  Voltage Rating 6/10 (12)kV
•
  Minimum Bending Radius 15 x Overall Diameter
•
  UV/Ozone Resistance Yes
•
  Flame Retardancy BS EN 60332-1-2
•
  Temperature Limits Ambient Temperature: -20°C to +60°C

  Conductor Operating Temperature: +90°C

  Short Circuit Temperature up to 5 sec: 250°C

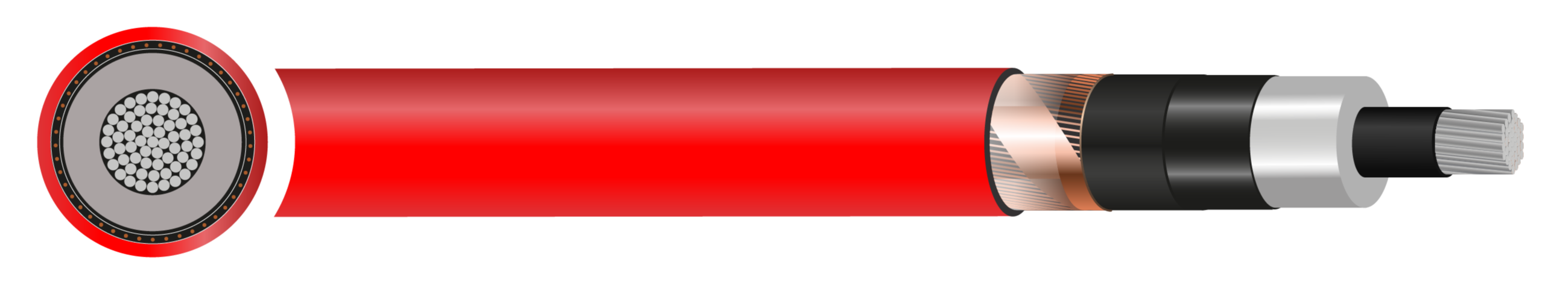

Construction

• Conductor: Class 2 Stranded Aluminium Conductor
• Conductor Screen: Semi-Conductive material
• Insulation: Cross Linked polyethylene (XLPE)
• Insulation Screen: Semi-conductive material (bonded)
• Filler: LSZH (Low Smoke Zero Halogen)
• Screen: Copper wires and copper tape
• Metallic Screen: Copper Wires plus Copper tape
• Outer Sheath: Low Smoke Zero Halogen (LSZH)
• Sheath Colour: Red

Standards

• IEC/EN 60754-1/2
• IEC/EN 61034-1/2,
• IEC 60228
• IEC 60502-2
• IEC 60332-1-2
