NAYCWY Cable - 16mm² to 240mm²

Description

NAYCWY cable is an aluminium low-voltage power and control cable used for fixed installations where increased electrical and mechanical protection is needed. It is used  for power distribution in power stations and industrial plants and for street lighting, house connection boxes, AC/DC charging for EV power, distribution boards and it is also used as a control cable for transmitting impulses and test data.

The cable can also be installed in cable ducts, tray and ladder within buildings though the design of the corrugated concentric conductor provides addition mechanical protection which makes it robust enough for both outdoor and indoor use. It can be installed in an underground installation without further protection. It has PVC insulation an EPDM inner sheath and water and UV-resistant PVC outer sheath.

Key Features

•
  Voltage Rating 600/1000 Volts
•
  Minimum Bending Radius 12 x Overall Diameter
•
  Flame Retardancy BS EN/IEC 60332-1-2
•
  Temperature Limits Fixed: -40°C to +70°C
  Flexed: -5°C to +50°C
  Conductor operating temperature: +70°C
  Short circuit temperature: +160°C

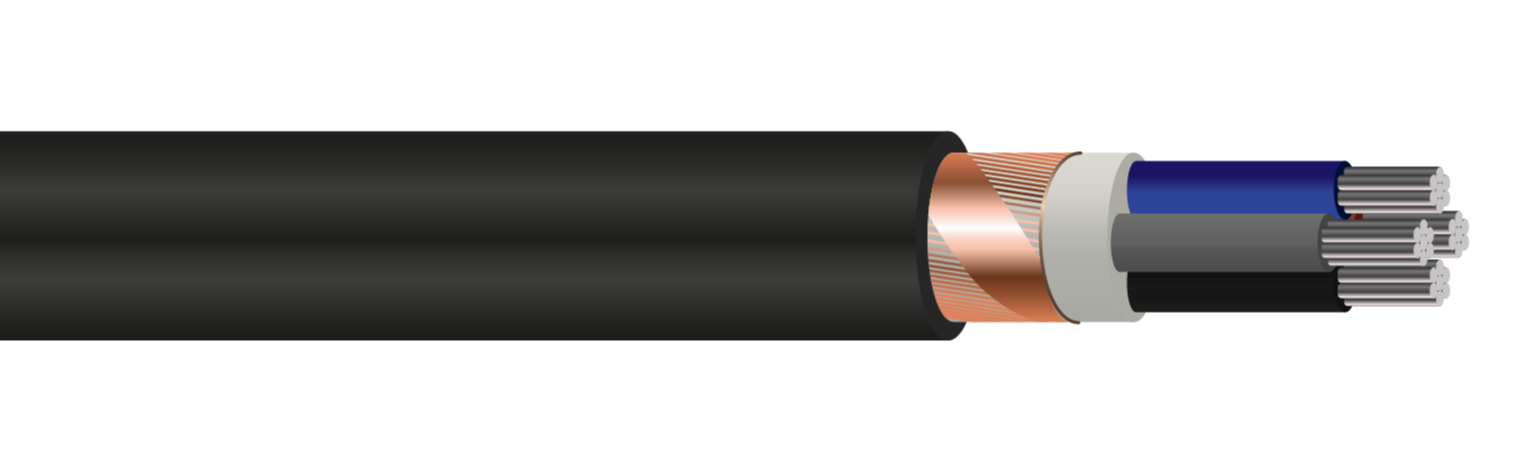

Construction

• Conductor: Class 1 solid or class 2 stranded aluminium sector shaped conductor
• Insulation: Polyvinyl Chloride (PVC)
• Bedding: Ethylene Propylene Diene Monomer (EPDM)
• Concentric Conductor: Copper wires with counter helix of copper tape
• Outer Sheath: Polyvinyl Chloride (PVC)
• Sheath Colour: Black

Standards

• IEC 60502-1
• VDE 0276-603
• BS EN/IEC 60332-1-2
• BS EN/IEC 60228

Core Colours
